KA22241 - DUAL EQUALIZER AMPLIFIER

Unisonic Technologies

The KA22241 by Unisonic Technologies is a DUAL EQUALIZER AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

KA22241 DUAL EQUALIZER AMPLIFIER by Unisonic Technologies - Datasheet Preview — Official preview page of the **KA22241** DUAL EQUALIZER AMPLIFIER datasheet (Unisonic Technologies).

Datasheet Details

Part number	KA22241
Manufacturer	Unisonic Technologies
File Size	274.67 KB
Description	DUAL EQUALIZER AMPLIFIER
Datasheet	KA22241_UnisonicTechnologies.pdf

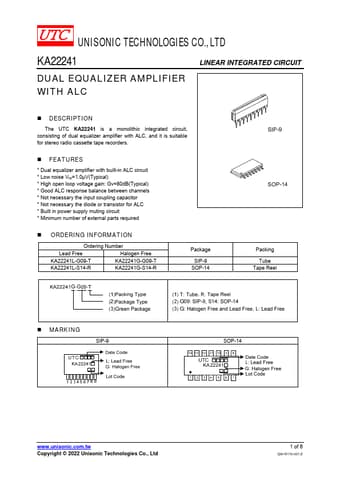

Additional preview pages of the KA22241 datasheet.

KA22241 Product details

Description

The UTC KA22241 is a monolithic integrated circuit, consisting of dual equalizer amplifier with ALC, and it is suitable for stereo radio cassette tape recorders.

Features

S.
Dual equalizer amplifier with built-in ALC circuit.
Low noise VNI=1.0μV(Typical).
High open loop voltage gain: Gv=80dB(Typical).
Good ALC response balance between channels.
Not necessary the input coupling capacitor.
Not necessary the diode or transistor for ALC.
Built in power supply muting circuit.
Minimum number of external parts required.
