L1923 Datasheet - Unisonic Technologies

500mA HIGH PSRR LDO REGULATORS

L1923 Features

* Low No-Load Supply Current: 90µA

* Guaranteed 500mA Output Current

* Dropout Voltage is 200mV @ 250mA Load

* OTP(Over-Temperature Protection) and Short-Circuit Protection

* Two Modes Of Operation: Fixed Mode：3.3V，3.5V，3.9V Adjustable Mode: 1.25V - 5.5V

* Maximum Supply Curre

L1923 General Description

4 5 2 3 The UTC L1923 is a low supply current, low dropout linear regulator. It is operating at 2.5V - 5.5V. The supply current is as low as 55μA in the no *load condition. In the shutdown mode, the maximum supply current is less than 1μA. A built-in over-temperature protection circuit is de.

L1923 Datasheet (220.44 KB)

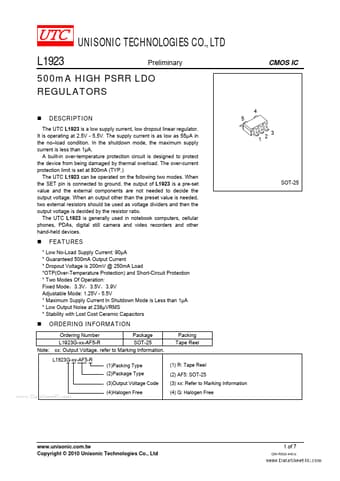

Preview of L1923 PDF

Datasheet Details

Part number:

L1923

Manufacturer:

Unisonic Technologies

File Size:

220.44 KB

Description:

500ma high psrr ldo regulators.
