M3368 Datasheet - Unisonic Technologies

M3368, 3-INPUT VIDEO SWITCH

UNISONIC TECHNOLOGIES CO., LTD M3368 Preliminary LINEAR INTEGRATED CIRCUIT 3-INPUT VIDEO SWITCH WITH 6dB AMPLIFIER * .
The UTC M3368 is three input integrated video switch witch selects one video or audio signal from three input signals.

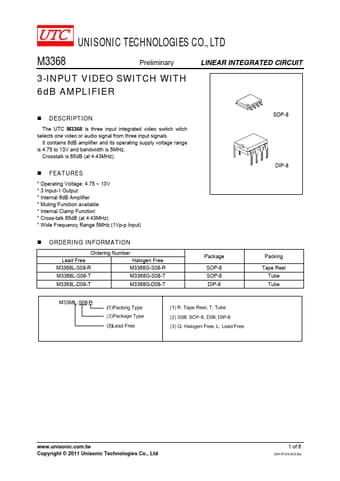

datasheet Preview Page 1 from Datasheet4u.com

M3368-UnisonicTechnologies.pdf

Preview of M3368 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

M3368

Manufacturer:

Unisonic Technologies

File Size:

179.07 KB

Description:

3-INPUT VIDEO SWITCH

Features

* Operating Voltage: 4.75 ~ 13V
* 3 Input-1 Output
* Internal 6dB Amplifier
* Muting Function available
* Internal Clamp Function
* Cross-talk 65dB (at 4.43MHz)
* Wide Frequency Range 5MHz (1Vp-p Input)
* ORDERING INFORMATION Ordering Number Lead Free Halogen

M3368 Distributors
