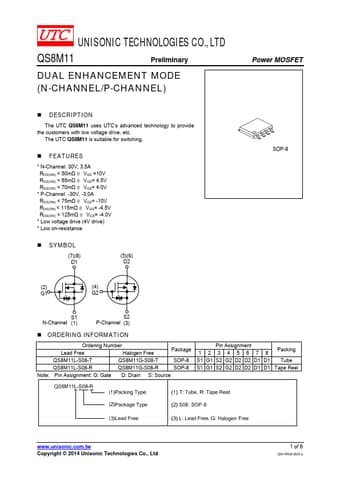

QS8M11 Datasheet, Mosfet, Unisonic Technologies

QS8M11 Features

• Mosfet
• N-Channel: 30V, 3.5A RDS(ON) < 50mΩ @ VGS =10V RDS(ON) < 65mΩ @ VGS= 4.5V RDS(ON) < 70mΩ @ VGS= 4.0V
• P-Channel: -30V, -3.0A RDS(ON) < 75mΩ @ VGS= -10V RDS(ON) < 115m

PDF File Details

Part number:

QS8M11

Manufacturer:

Unisonic Technologies

File Size:

208.69kb

Download:

📄 Datasheet

Description:

Power mosfet. The UTC QS8M11 uses UTC’s advanced technology to provide the customers with low voltage drive, etc. The UTC QS8M11 is suitable for sw
