TA7668BP - DUAL PRE-AMPLIFIER

TA7668BP Description

UTC TA7668BP LINEAR INTEGRATED CIRCUIT DUAL PRE-AMPLIFIER FOR TAPE RECORDER .
The UTC TA7668BP is a dual pre-amplifier with ALC and muting designed for use recorder/playback amplifier of tape recorder.

TA7668BP Features

* Build-in ALC detector circuit
* Build-in muting circuit
* Wide operating voltage range( 6V to 15V) DIP-16 BLOCK DIAGRAM Ch1 Pre-Out and Rec in Ch1 Rec Mute Mute Output Outpu t Input 5 Ch1 Pre IN NF 4 3 15 6 PreAMP Rec AMP Ch1 Pre IN 7 16 Vcc ALC 8 ALC DET 2 Vs Ch2 Pre IN

📥 Download Datasheet

Preview of TA7668BP PDF

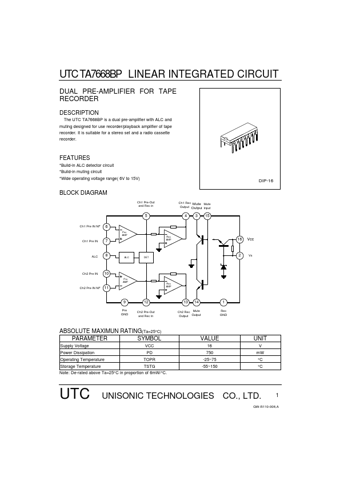

datasheet Preview Page 2 datasheet Preview Page 3
