TDA2822 - Dual Low Voltage Power Amplifier

TDA2822 Description

UNISONIC TECHNOLOGIES CO.,LTD.TDA2822 LINEAR INTEGRATED CIRCUIT DUAL LOW VOLTAGE POWER AMPLIFIER * .
The UTC TDA2822 is a monolithic integrated audio amplifier in a 8-Pin plastic dual in line package.

TDA2822 Features

* Wide Operating Supply Voltage: VCC=1.8V - 12V.
* Low Crossover Distortion.
* Low Quiescent Circuit Current.
* Bridge/Stereo Configuration. DIP-8 SOP-8
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free TDA2822L-D08-T TDA2822G-D08-T TDA2822L-S08-R TDA2822G-S0

📥 Download Datasheet

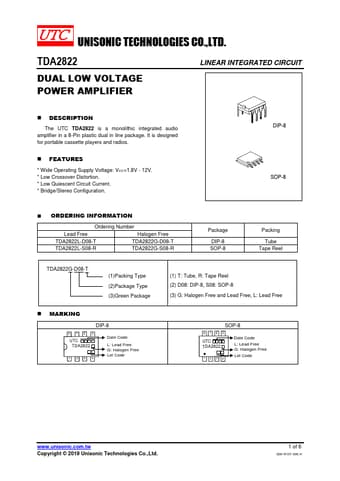

Preview of TDA2822 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA2822
Manufacturer
Unisonic Technologies
File Size
268.35 KB
Datasheet
TDA2822_UnisonicTechnologies.pdf
Description
Dual Low Voltage Power Amplifier
