UM601A

VOLTAGE AND CURRENT CONTROLLER

UM601A Features

* 1.24V Series Voltage Reference with 10mA Output Current and 1% Precision (UM601A)

* Two Operational Amplifiers with ORed Output and 1MHz Gain Bandwidth Product

* Built-In Current Generator with Enable / Disable Function

* 4.5 ~ 32V Supply Voltage Range

* ORDERING INFORMATION

UM601A General Description

The UTC UM601A integrated circuit incorporates a high stability series band gap voltage reference, two ORed operational amplifiers and a current source. This IC compares the DC voltage and the current level at the output of a switching power supply to an internal reference. It provides a feedback t.

UM601A Datasheet (152.78 KB)

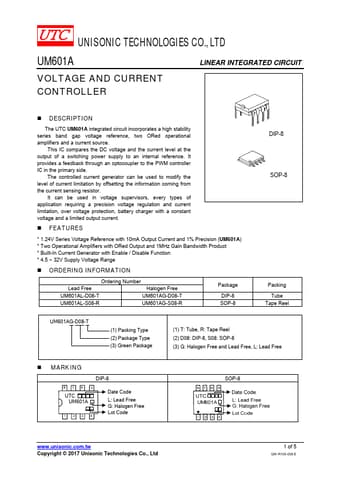

Preview of UM601A PDF

Datasheet Details

Part number:

UM601A

Manufacturer:

Unisonic Technologies

File Size:

152.78 KB

Description:

Voltage and current controller.
