US201, US201C - HIGH-SIDE POWER SWITCHES

US201 Description

UNISONIC TECHNOLOGIES CO., LTD US201/A/B/C HIGH-SIDE POWER SWITCHES WITH FLAG * .
The UTC US201/A/B/C series are 80mΩ high-side power switches.

US201 Features

* 80mΩ(Typ) N-Channel MOSFET
* Supply Current:
* Switch On : 25μA(Typ)
* Switch Off : 1μA (Typ)
* Load Current 500mA for US201 and 1.0A for US201A/B/C
* Input Voltage from 2V ~ 5.5V
* In Off-State: Output Voltage can be Higher than Input
* ORDERING INFORMATIO

US201 Applications

* This MOSFET should be driven by a charge pump circuitry inside. Its switch on resistance is as low as 80mΩ which we know specially meets the drop voltage for USB applications. The flag pin can output an open-drain fault flag to next controller. There’re lots internal special ways for protecting the

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US201, US201C. Please refer to the document for exact specifications by model.

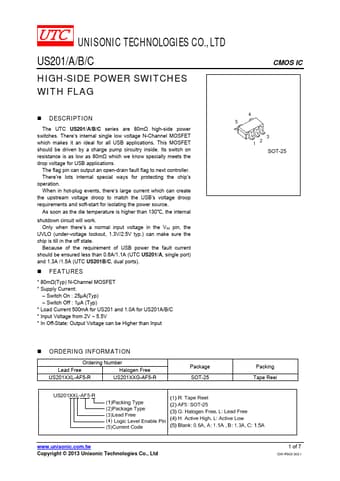

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
US201, US201C
Manufacturer
Unisonic Technologies
File Size
277.46 KB
Datasheet
US201C-UnisonicTechnologies.pdf
Description
HIGH-SIDE POWER SWITCHES
Note
This datasheet PDF includes multiple part numbers: US201, US201C.
Please refer to the document for exact specifications by model.
