UT3006

N-Channel Power MOSFET

UT3006 Features

* RDS(ON) ≤ 9.0 mΩ @ VGS=10V, ID=30A RDS(ON) ≤ 16 mΩ @ VGS=4.5V, ID=20A

* High Switching Speed

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package UT3006L-TN3-R UT3006G-TN3-R TO-252 UT3006L-P5060-R UT3006G-P5060-R PDFN5×6 Note: Pin

UT3006 Datasheet (224.56 KB)

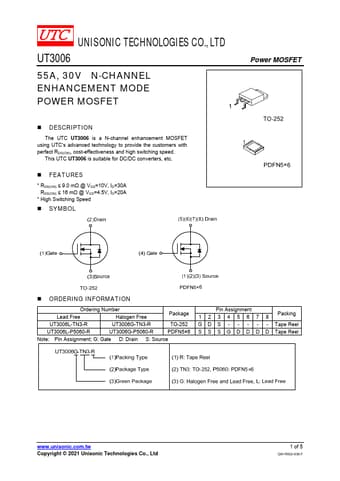

Preview of UT3006 PDF

Datasheet Details

Part number:

UT3006

Manufacturer:

Unisonic Technologies

File Size:

224.56 KB

Description:

N-channel power mosfet.
