UTCPN2222A - NPN General Purpose Amplifier

Key Features

  • www. DataSheet4U. com.
  • This device is for use as a medium power amplifier and switch requiring collector currents up to 500mA. Sourced from Process 19. 1 TO-92 1:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UTC-1005 Thin Film Cascadable Amplifier Teledyne
UTC-1044 Thin Film Cascadable AMplifier Agilent Technologies
UTC-111 Thin-Film Cascadable Amplifier Teledyne
UTC-2012 Thin-Film Cascadable Amplifier Teledyne Cougar
UTC-2321 Thin-Film Cascadable Amplifier Teledyne

Other Datasheets by Unisonic Technologies

Part Number Description
UTCPN2907A PNP General Purpose Amplifier
UTCPC1031 TV HORIZONTAL DEFLECTION CIRCUIT
UTCPC1353 TV AUDIO PROCESSING CIRCUIT
UTCPC1366 LINEAR INTEGRATED CIRCUIT
UTCPCR406 SCR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

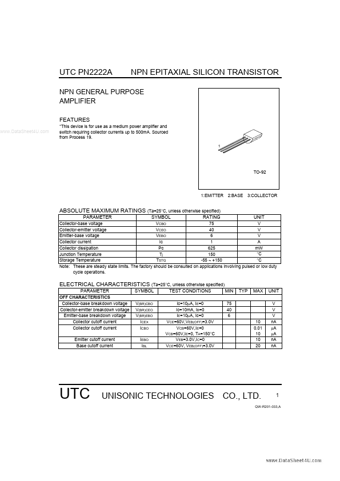

UTC PN2222A NPN EPITAXIAL SILICON TRANSISTOR NPN GENERAL PURPOSE AMPLIFIER FEATURES www.DataSheet4U.com *This device is for use as a medium power amplifier and switch requiring collector currents up to 500mA. Sourced from Process 19. 1 TO-92 1:EMITTER 2:BASE 3:COLLECTOR ABSOLUTE MAXIMUM RATINGS (Ta=25°C, unless otherwise specified) PARAMETER SYMBOL RATING UNIT Collector-base voltage VCBO 75 V Collector-emitter voltage VCEO 40 V Emitter-base voltage VEBO 6 V Collector current Ic 1 A Collector dissipation Pc 625 mW °C Junction Temperature Tj 150 °C Storage Temperature TSTG -55 ~ +150 Note: These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
