UTCU584, UTCU585 (UTCU584 - UTCU587) LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED

UTCU584 Description

UTC U584/5/7 LINEAR INTEGRATED CIRCUIT 8A,5A,3A LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED .
The UTC U584/585/587 voltage regulators are monolithic integrated circuits, designed for use in applications requiring a well regulated positive outpu.

UTCU584 Features

* Low dropout performance.
* Adjustable output down to 1.3V.
* Line regulation typically below 0.1%.
* Load regulation typically below 0.1%.
* Output current can be up to 8 A for UTC U584.
* Three-terminal adjustable or fixed 3.3V. 1 TO-263-3 1 TO-252 3: INPUT 1: ADJ/GND 2: OU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UTCU584, UTCU585. Please refer to the document for exact specifications by model.

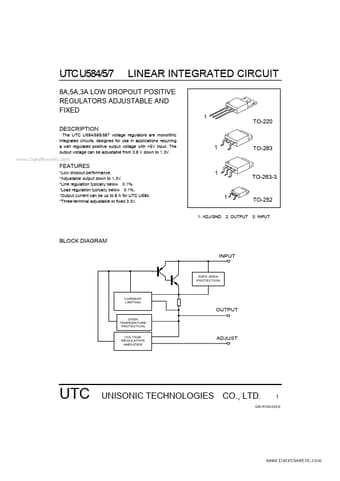

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTCU584, UTCU585
Manufacturer
Unisonic Technologies
File Size
212.54 KB
Datasheet
UTCU585_UnisonicTechnologies.pdf
Description
(UTCU584 - UTCU587) LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED
Note
This datasheet PDF includes multiple part numbers: UTCU584, UTCU585.
Please refer to the document for exact specifications by model.
