EKME250ETD100ME11A_UnitedChemi.pdf
Datasheet Details
Part number:
EKME351Exx330ML25S, EKME250ETD100ME11A
Manufacturer:
United Chemi
File Size:
91.77 KB
Description:
Kme series aluminum electrolytic capacitors.
Note:
This datasheet PDF includes multiple part numbers: EKME351Exx330ML25S, EKME250ETD100ME11A.
Please refer to the document for exact specifications by model.

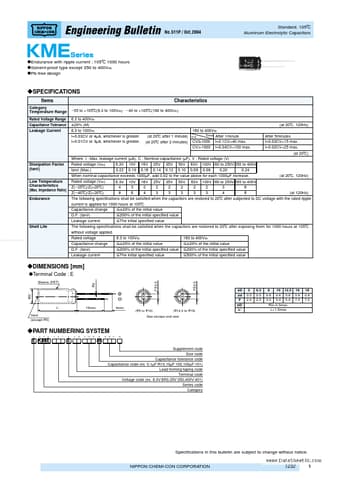

EKME351Exx330ML25S, EKME250ETD100ME11A, KME Series Aluminum Electrolytic Capacitors
Engineering Bulletin @Endurance with ripple current : 105C 1000 hours @Solvent-proof type except 350 to 400Vdc @Pb-free design No.511P / Oct.2004 Standard, 105C Aluminum Electrolytic Capacitors ?SPECIFICATIONS Items Category Temperature Range Rated Voltage Range Capacitance Tolerance Leakage Current Characteristics -55 to +105C(6.3 to 100Vdc) -40 to +105C(160 to 400Vdc) 6.3 to 400Vdc P20% (M) 6.3 to 100Vdc I=0.03CV or 4MA, whichever is greater.
I=0.01CV or 3MA, whichever is greater.
(at 20C
