CHE1270a99F Detector

The CHE1270a99F is a detector that integrates a matched detection diode (Vdet). RF IN A reference diode is also available to be Matching used in differential mode (Vref). It is designed for a wide range of applications where an accurate transmitted power control is required, typically commer.

CHE1270a99F Features

* Wide frequency range 5-44GHz

* 30dB dynamic range

* ESD protected

* Chip size: 1.41 x 0.89 x 0.1mm Transmitted power detection (mV) 10000 1000 10GHz 22GHz 40GHz 11GHz 27GHz 42GHz 12GHz 32GHz 44GHz 17GHz 37GHz 100 Vdetect= Vref-Vdet (mV) 10 1 -20 -18 -16 -14 -12 -10 -8 -6

CHE1270a99F-UnitedMonolithicSemiconductors.pdf

Preview of CHE1270a99F PDF

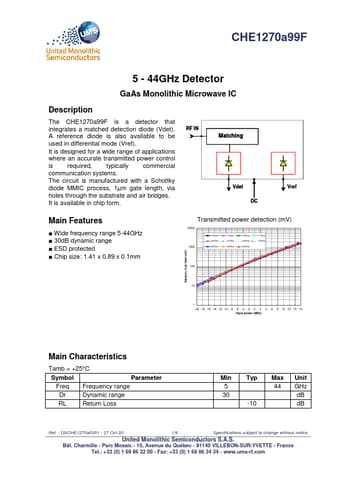

CHE1270a99F Datasheet Preview Page 2 CHE1270a99F Datasheet Preview Page 3

Datasheet Details

Part number:

CHE1270a99F

Manufacturer:

United Monolithic Semiconductors

File Size:

268.95 KB

Description:

Detector.
