CHX1191-98F, 13.5-40.5GHz Frequency Multiplier
CHX1191-98F 13.5-40.5GHz Frequency Multiplier GaAs Monolithic Microwave IC The CHX1191-98F is a monolithic time three multiplier which integrates input and output buffer.
The output frequency from 33.7 to 43.5GHz, combined with an output power of 6dBm make of this circuit a very versatile multiplier for telecommunication, specifically for Eband LO chain system.
Moreover it integrates ESD protection.
The overall power supply is of +5V/ 80mA.
It is developed on a robust 0.15µm gate length pHEMT
CHX1191-98F Features
* 10 5
* Broadband performances: 11.25-14.5GHz 0
* 6dBm Pout for -1dBm input power -5
* DC bias: V+=5 Volts, V- = -5V@Id=80mA -10

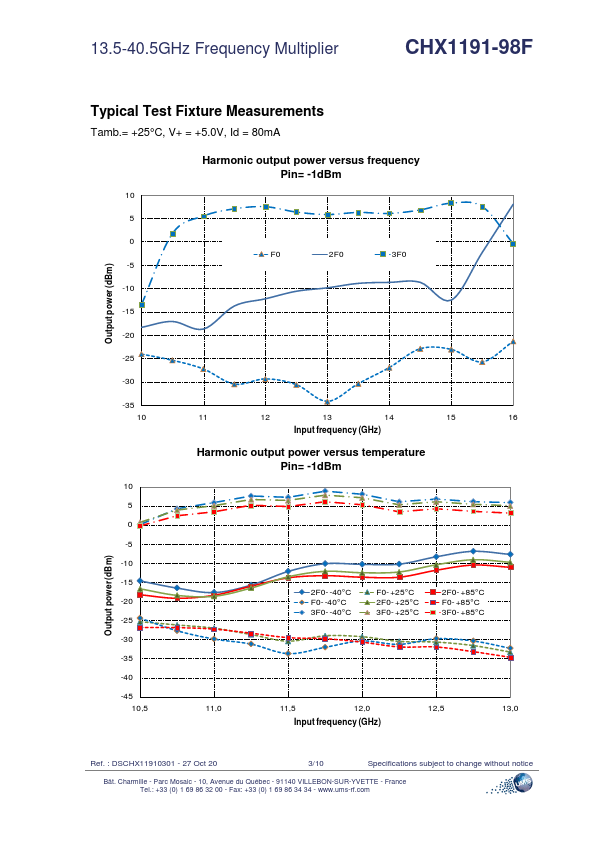

* Chip size 1.77x0.94x0.1mm -15 -20 F0 2F0 3F0 -25 -30 -35 10 11 12 13 14 15 16 Input frequency (GHz) Main Electrical Characterist
