MPC-P09828 - 55-65GHz Single Side Band Mixer

Datasheet Summary

Description

The MFC-P09828 is a multifunction chip (MFC) which integrates a LO buffer amplifier and a subharmonically balanced diode mixer for 2LO suppression and image rejection.

It is usable both for up-conversion and down-conversion.

Features

Broadband performance : 55-65 GHz RF.
12dB conversion Loss.
10dBc image rejection.
+10dBm LO input power.
+0dBm input power (1dB gain comp. ).
DC power consumption, 90mA @ 3.5V.
Chip size : 2.10 x 1.17 x 0.10 mm Main Characteristics Tamb. = 25°C Parameter FRF FLO FIF Lc RF frequency range LO frequency range IF frequency range Conversion Loss Min 55 27.5 DC Typ Max 65 32.5 5 Unit GHz GHz GHz dB 12 ESD Protection : Electrostatic discharge sensitive device.

Datasheet Details

Part number	MPC-P09828
Manufacturer	United Monolithic Semiconductors
File Size	153.12 KB
Description	55-65GHz Single Side Band Mixer
Datasheet	MPC-P09828 Datasheet

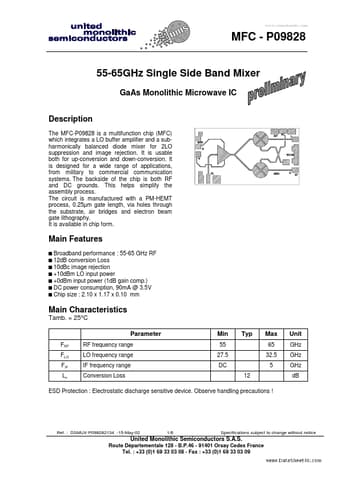

Additional preview pages of the MPC-P09828 datasheet.

📁 Similar Datasheet

MPC - POWER FILM CAPACITORS (Rubycon)

MPC01 - (MPC Series) Metal Plate Cement Resistor (Futaba Electric)

MPC0730LR20C - SMD Inductors (KEMET)

MPC0740LR42C - SMD Inductors (KEMET)

MPC0750LR60C - SMD Inductors (KEMET)

MPC0750LR68C - SMD Inductors (KEMET)

MPC100 - Wide Bandwidth 4 x 1 VIDEO MULTIPLEXER (Burr-Brown)

MPC102 - Wide-Bandwidth DIFFERENTIAL 2 x 1 MULTIPLEXER (Burr-Brown)

MPC104 - Wide-Bandwidth 2 x 1 VIDEO MULTIPLEXER (Burr-Brown)

MPC1040LR36 - (MPC1040LRxx / MPC1250LR50) Large Current Choke Coils (NEC)

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com MFC - P09828 55-65GHz Single Side Band Mixer GaAs Monolithic Microwave IC Description The MFC-P09828 is a multifunction chip (MFC) which integrates a LO buffer amplifier and a subharmonically balanced diode mixer for 2LO suppression and image rejection. It is usable both for up-conversion and down-conversion. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly process. The circuit is manufactured with a PM-HEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is available in chip form.
