UM3004

N-Ch 30V Fast Switching MOSFETs

UM3004 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summary BVDSS 30V RDS(ON) 9mΩ ID 10.3A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Netw

UM3004 General Description

The UM3004 is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The UM3004 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabili.

UM3004 Datasheet (763.81 KB)

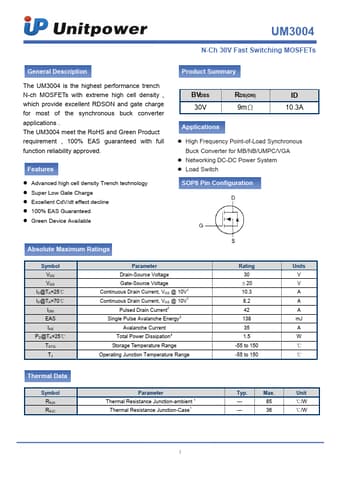

Preview of UM3004 PDF

Datasheet Details

Part number:

UM3004

Manufacturer:

Unitpower

File Size:

763.81 KB

Description:

N-ch 30v fast switching mosfets.
