UCC3941-3, UCC2941-3 Datasheet - Unitrode

UCC3941-3 (UCCx941-x) 1V Synchronous Boost Converter

The UCC3941 family of low input voltage single inductor boost converters are optimized to operate from a single or dual alkaline cell, and step up to a 3.3V, 5V, or an adjustable output at 500mW. The UCC3941 family also provides an auxiliary 9V 100mW output, primarily for the gate drive supply, whic.

UCC3941-3 Features

* 1V Input Voltage Operation Startup Guaranteed Under Full Load on Main Output With Operation Down to 0.4V

* Input Voltage Range of 1V to VOUT + 0.5V

* 500mW Output Power at Battery Voltages as Low as 0.8V

* Secondary 9V Supply From a Single Inductor

UCC2941-3_Unitrode.pdf

This datasheet PDF includes multiple part numbers: UCC3941-3, UCC2941-3. Please refer to the document for exact specifications by model.

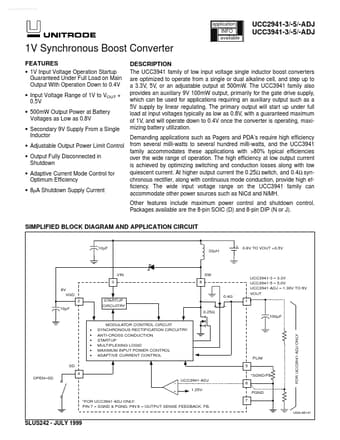

UCC3941-3 Datasheet Preview Page 2 UCC3941-3 Datasheet Preview Page 3

Datasheet Details

Part number:

UCC3941-3, UCC2941-3

Manufacturer:

Unitrode

File Size:

214.39 KB

Description:

(uccx941-x) 1v synchronous boost converter.

Note:

This datasheet PDF includes multiple part numbers: UCC3941-3, UCC2941-3.
Please refer to the document for exact specifications by model.
