UM6601V5S 7.5 - 15Watt DC-DC Converter

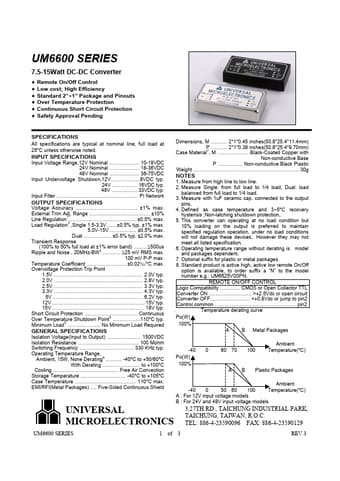

UM6600 SERIES 7.5-15Watt DC-DC Converter Remote On/Off Control Low cost; High Efficiency Standard 2”×1” Package and Pinouts Over Temperature Protection Continuous Short Circuit Protection Safety Approval Pending SPECIFICATIONS All specifications are typical at nominal line, full load at 25°C unless otherwise noted. INPUT SPECIFICATIONS Input Voltage Range,12V Nominal ……………… 10-18VDC 24V Nominal ……………… 18-36VDC 48V Nominal ……………… 36-75.
