LTUCS455 - SM Ceramic Filter

This page provides the datasheet information for the LTUCS455, a member of the LTUCG455 SM Ceramic Filter family.

📥 Download Datasheet

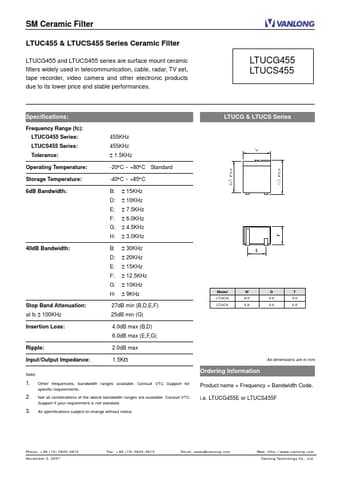

Datasheet preview – LTUCS455

Datasheet Details

Part number LTUCS455
Manufacturer VANLONG
File Size 20.16 KB
Description SM Ceramic Filter
Datasheet download datasheet LTUCS455 Datasheet
Additional preview pages of the LTUCS455 datasheet.

📁 Similar Datasheet

  • LTUCS455B - CERAMIC FILTERS (EUROQUARTZ)
  • LTUCS455B - Ceramic Filter (Chequers Electronic)
  • LTUCS455C - CERAMIC FILTERS (EUROQUARTZ)
  • LTUCS455C - Ceramic Filter (Chequers Electronic)
  • LTUCS455D - CERAMIC FILTERS (EUROQUARTZ)
  • LTUCS455D - Ceramic Filter (Chequers Electronic)
  • LTUCS455E - CERAMIC FILTERS (EUROQUARTZ)
  • LTUCS455E - Ceramic Filter (Chequers Electronic)
  • LTUCS455F - CERAMIC FILTERS (EUROQUARTZ)
  • LTUCS455F - Ceramic Filter (Chequers Electronic)
Other Datasheets by VANLONG

Full PDF Text Transcription

Click to expand full text
SM Ceramic Filter LTUC455 & LTUCS455 Series Ceramic Filter LTUCG455 and LTUCS455 series are surface mount ceramic filters widely used in telecommunication, cable, radar, TV set, tape recorder, video camera and other electronic products due to its lower price and stable performances. LTUCG455 LTUCS455 Specifications: Frequency Range (fc): LTUCG455 Series: LTUCS455 Series: Tolerance: Operating Temperature: Storage Temperature: 6dB Bandwidth: 40dB Bandwidth: Stop Band Attenuation: at fc ± 100KHz Insertion Loss: Ripple: Input/Output Impedance: 455KHz 455KHz ± 1.5KHz -20°C ~ +80°C Standard -40°C ~ +85°C B: ± 15KHz D: ± 10KHz E: ± 7.5KHz F: ± 6.0KHz G: ± 4.5KHz H: ± 3.0KHz B: ± 30KHz D: ± 20KHz E: ± 15KHz F: ± 12.5KHz G: ± 10KHz H: ± 9KHz 27dB min (B,D,E,F) 25dB min (G) 4.0dB max (B,D) 6.
