200N6F3 N-Channel 60V MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

200N6F3-VB TO220 200N6F3-VB TO220 Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) ().

📥 Download Datasheet

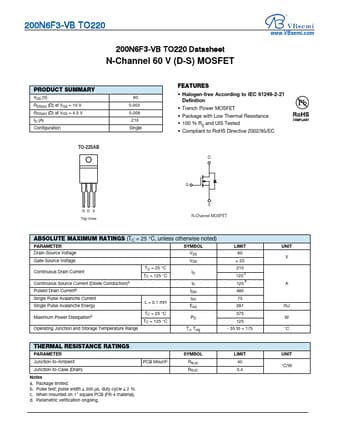

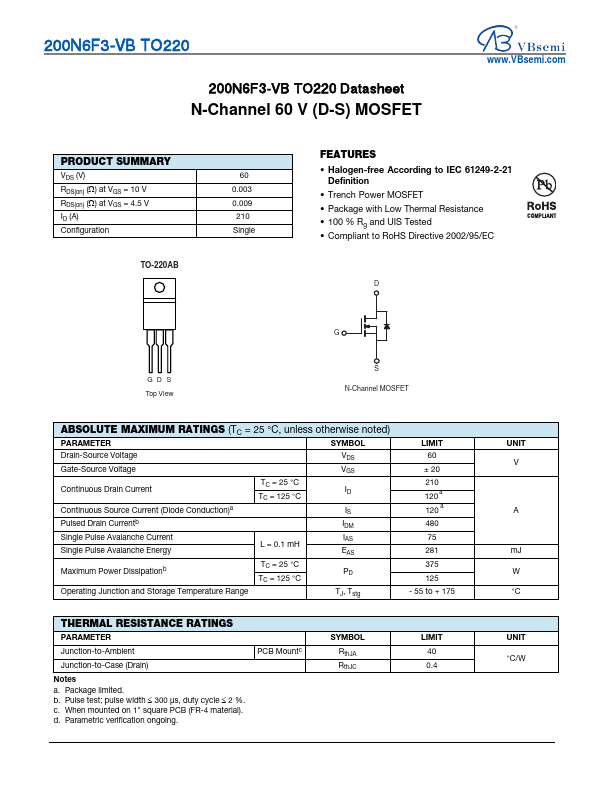

Preview of 200N6F3 PDF

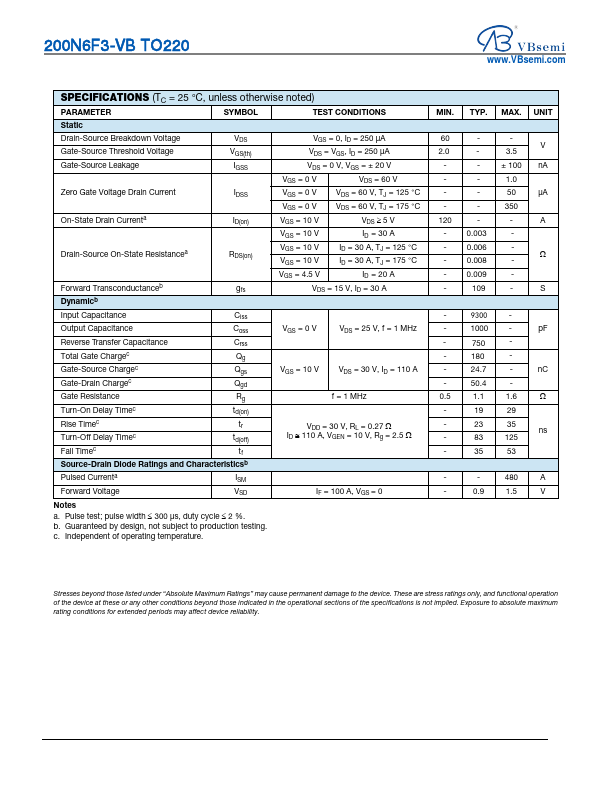

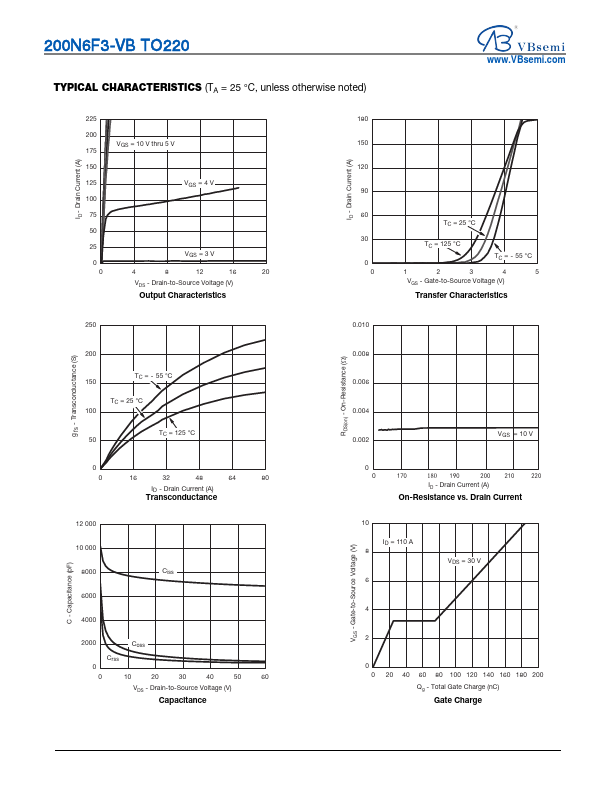

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
200N6F3
Manufacturer
VBsemi
File Size
447.83 KB
Datasheet
200N6F3-VBsemi.pdf
Description
N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Package with Low Thermal Resistance
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC D G GD S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C,
