204P, Dual P-Channel 20V MOSFET

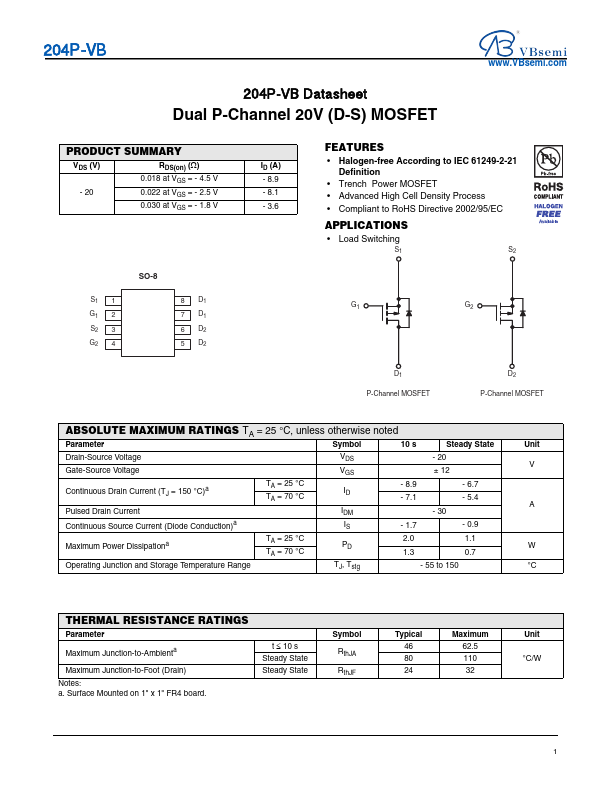

204P-VB 204P-VB Datasheet Dual P-Channel 20V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.018 at VGS = - 4.5 V - 20 0.022.

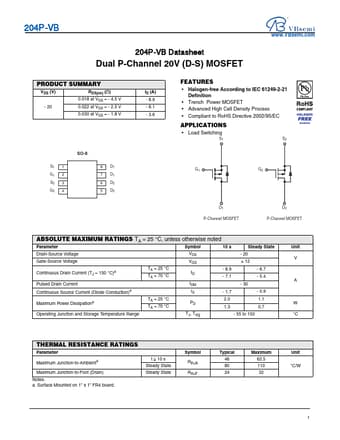

datasheet Preview Page 1 from Datasheet4u.com

204P-VBsemi.pdf

204P Datasheet Preview — Preview of 204P PDF

Datasheet Details

Part number:

204P

Manufacturer:

VBsemi

File Size:

426.21 KB

Description:

Dual P-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Advanced High Cell Density Process

Applications

* Load Switching S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS - 20 V VGS ± 12 Continuous Drain Current (TJ = 150 °C)a Pu
