2SK2440 N-Channel 30V MOSFET

2SK2440 Description

2SK2440-VB 2SK2440-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.008 at VGS= 10 V 0.011 at .

2SK2440 Features

* Halogen-free
* Trench Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

2SK2440 Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 VGS ± 20 V TC = 25 °C 13 Continuous Drain Current (TJ = 150 °C) TC =

📥 Download Datasheet

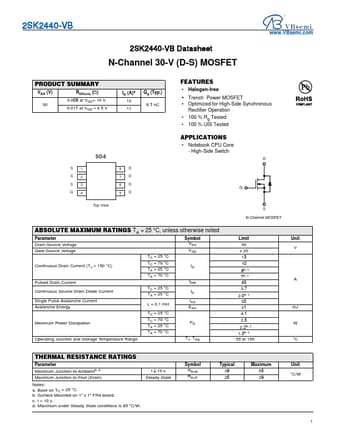

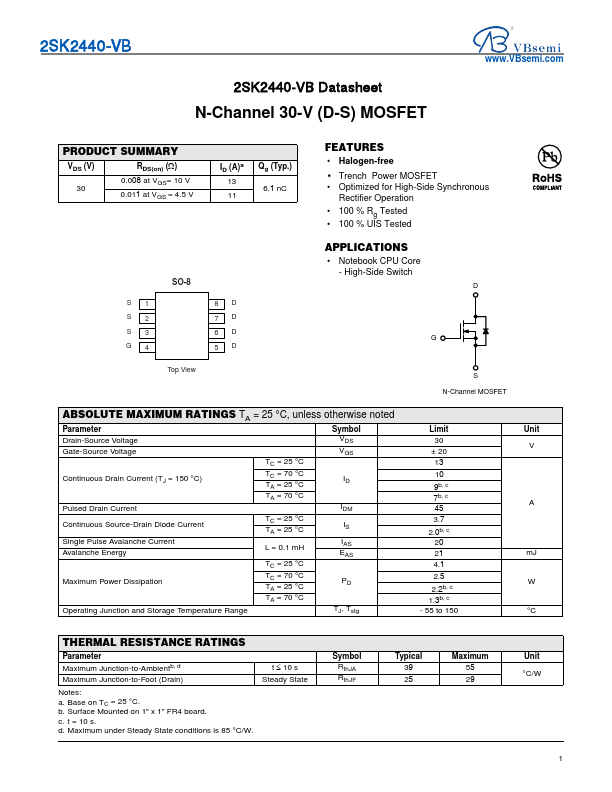

Preview of 2SK2440 PDF

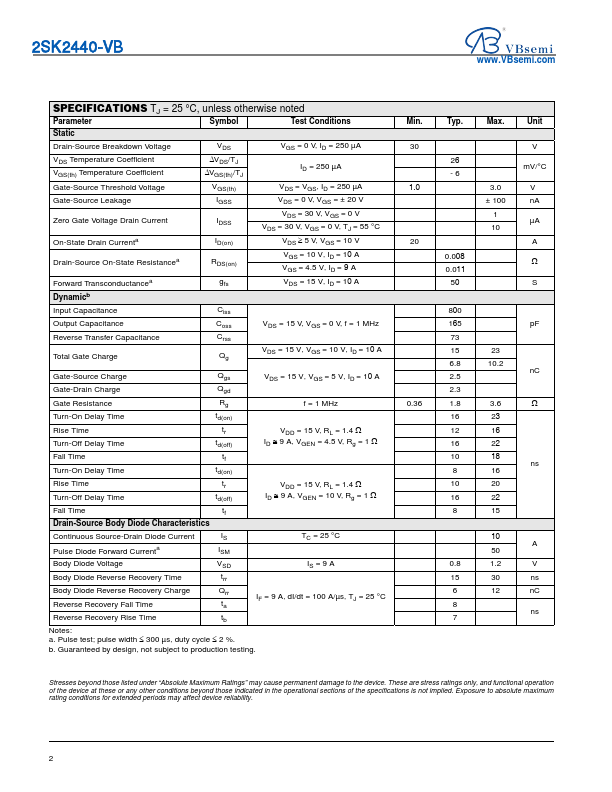

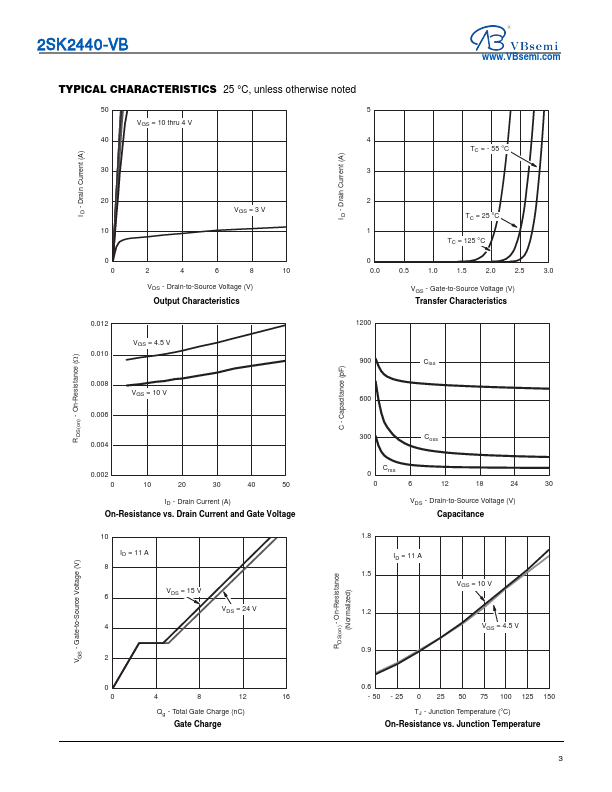

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2440
Manufacturer
VBsemi
File Size
199.08 KB
Datasheet
2SK2440-VBsemi.pdf
Description
N-Channel 30V MOSFET
