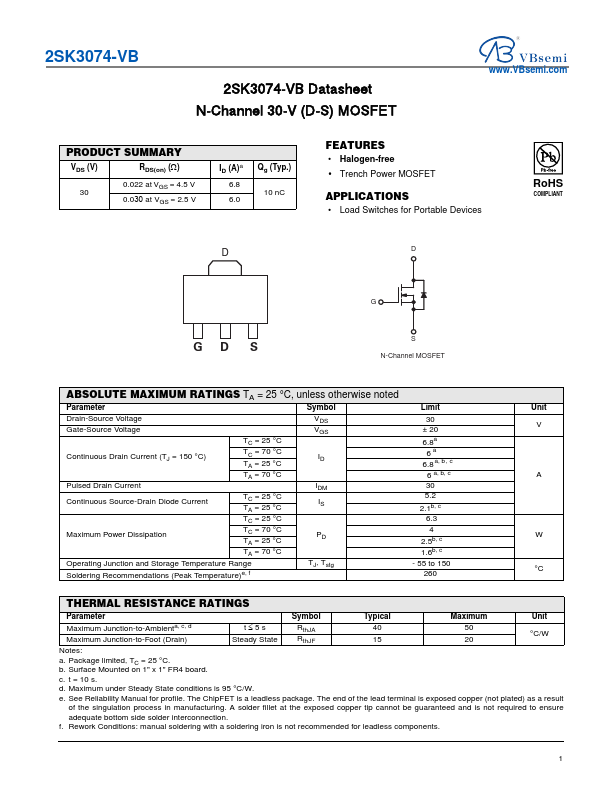

2SK3074
FEATURES
- Halogen-free
- Trench Power MOSFET
APPLICATIONS
- Load Switches for Portable Devices
Ro HS
PLIANT
GD S
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
± 20
TC = 25 °C
6.8a
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
6a 6.8 a, b , c
TA = 70 °C
6 a, b, c
Pulsed Drain Current
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
5.2 2.1b, c
TC = 25 °C
Maximum Power Dissipation
TC = 70 °C TA = 25...
