4224LGM Datasheet - VBsemi

4224LGM, Dual N-Channel 20V MOSFET

4224LGM-VB 4224LGM-VB Datasheet Dual N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.009 at VGS = 4.5 V 20 0.01.

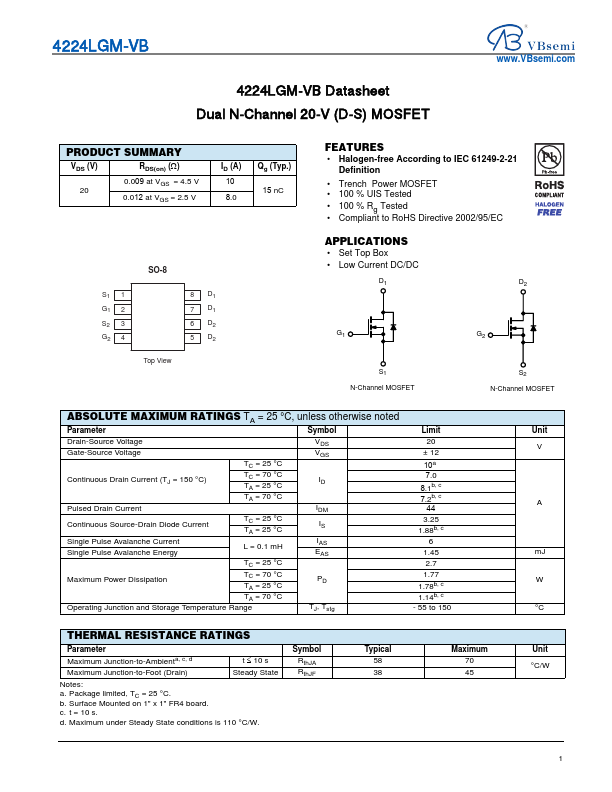

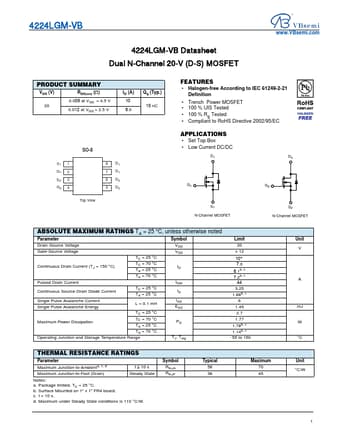

datasheet Preview Page 1 from Datasheet4u.com

4224LGM-VBsemi.pdf

4224LGM Datasheet Preview — Preview of 4224LGM PDF

Datasheet Details

Part number:

4224LGM

Manufacturer:

VBsemi

File Size:

215.61 KB

Description:

Dual N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

Applications

* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ± 12 TC = 25 °C 10a Continuous Drain C
