* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested APPLICATIONS
* Load Switch
* Battery Switch S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Volta
4423M
VBsemi
192.31 KB
P-channel 30v mosfet.

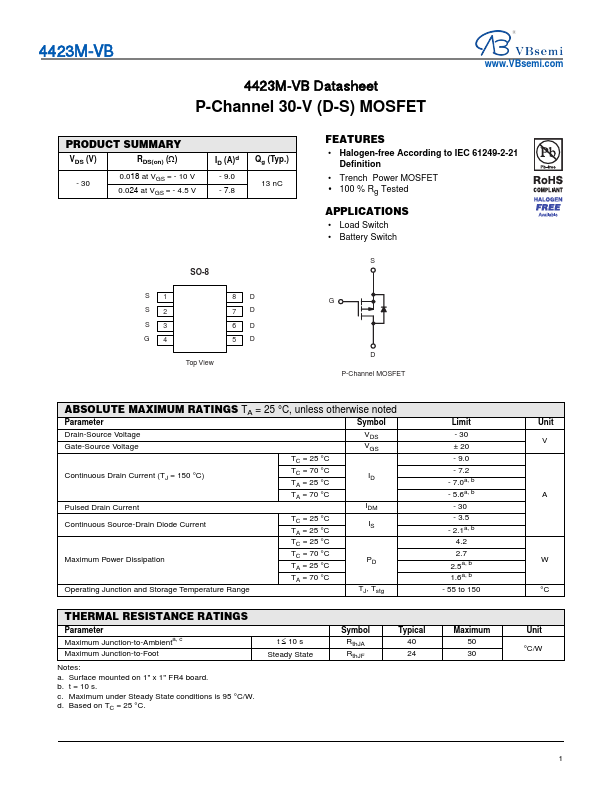

4423M-VB 4423M-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V 0.024 at.
