78N75F4, N-Channel 80V MOSFET

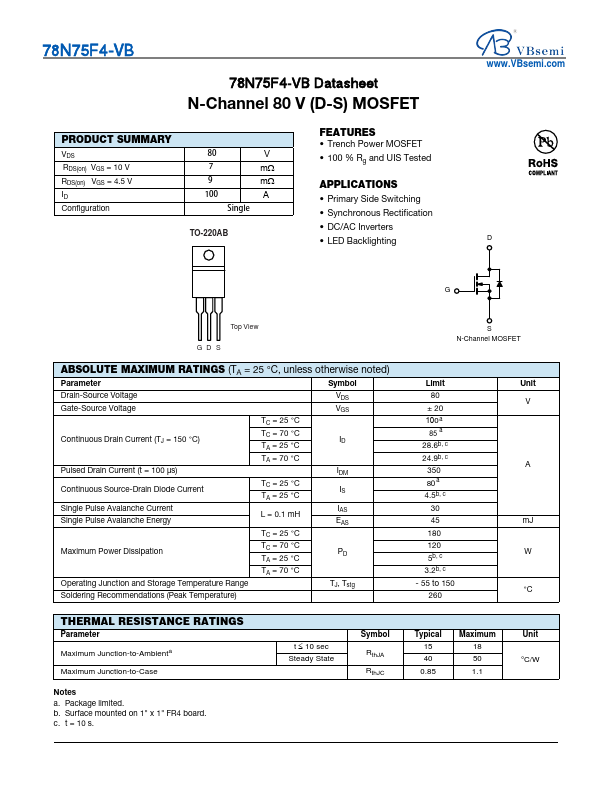

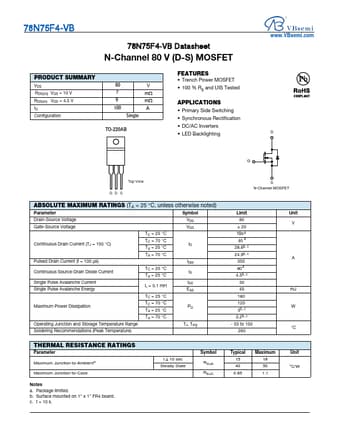

78N75F4-VB 78N75F4-VB Datasheet N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Configuration 80 V 7 m.

datasheet Preview Page 1 from Datasheet4u.com

78N75F4-VBsemi.pdf

78N75F4 Datasheet Preview — Preview of 78N75F4 PDF

Datasheet Details

Part number:

78N75F4

Manufacturer:

VBsemi

File Size:

385.62 KB

Description:

N-Channel 80V MOSFET

Features

* Trench Power MOSFET

Applications

* Primary Side Switching
* Synchronous Rectification
* DC/AC Inverters
* LED Backlighting www. VBsemi. com D G Top View GD S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain
