9435GM P-Channel 30V MOSFET

9435GM Description

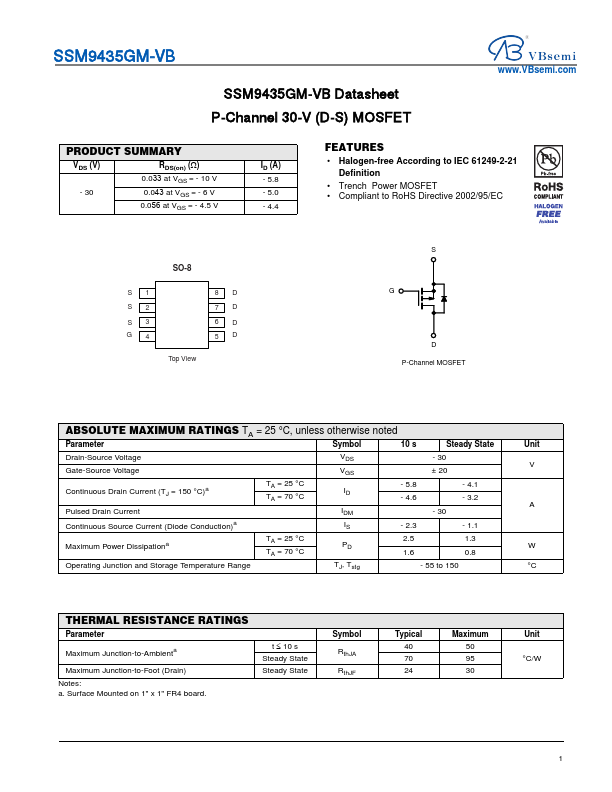

SSM9435GM-VB SSM9435GM-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.033 at VGS = - 10 V - 30 .

9435GM Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Compliant to RoHS Directive 2002/95/EC SO-8 S1 S2 S3 G4 8D 7D 6D 5D Top View S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady

📥 Download Datasheet

Preview of 9435GM PDF

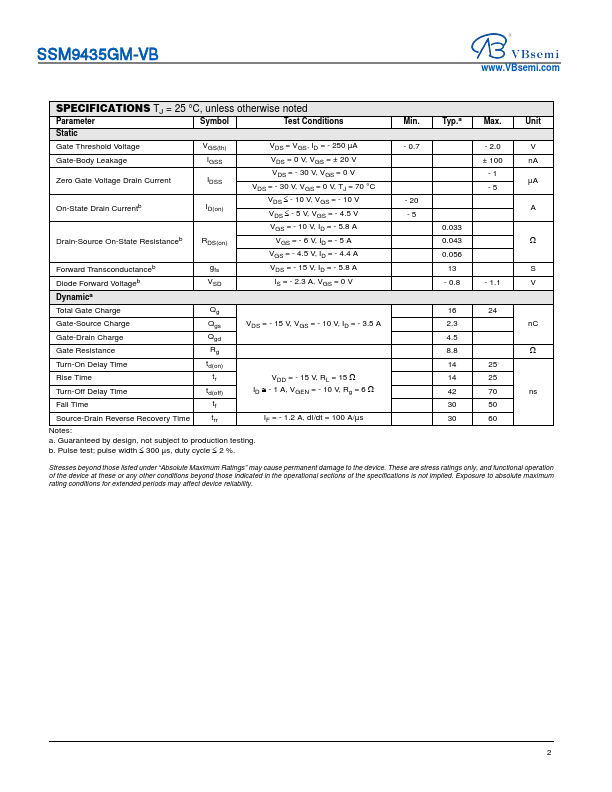

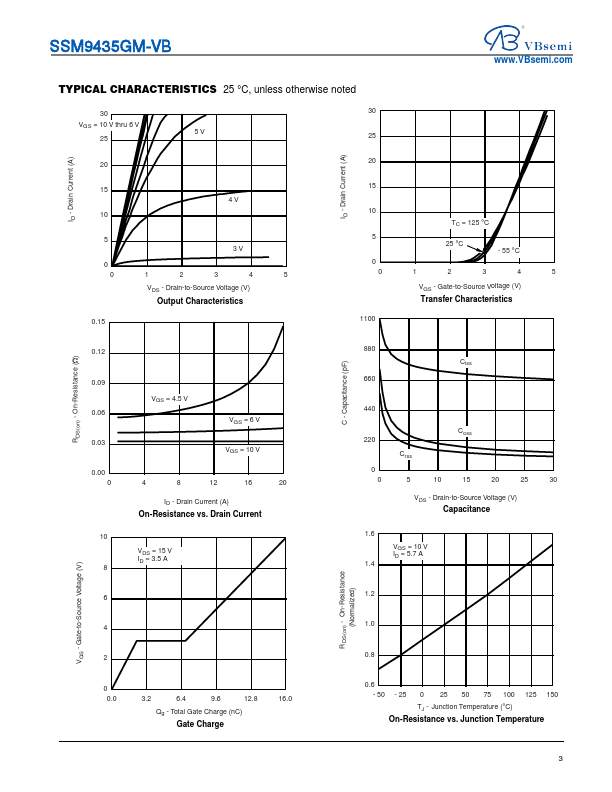

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
9435GM
Manufacturer
VBsemi
File Size
228.62 KB
Datasheet
9435GM-VBsemi.pdf
Description
P-Channel 30V MOSFET
