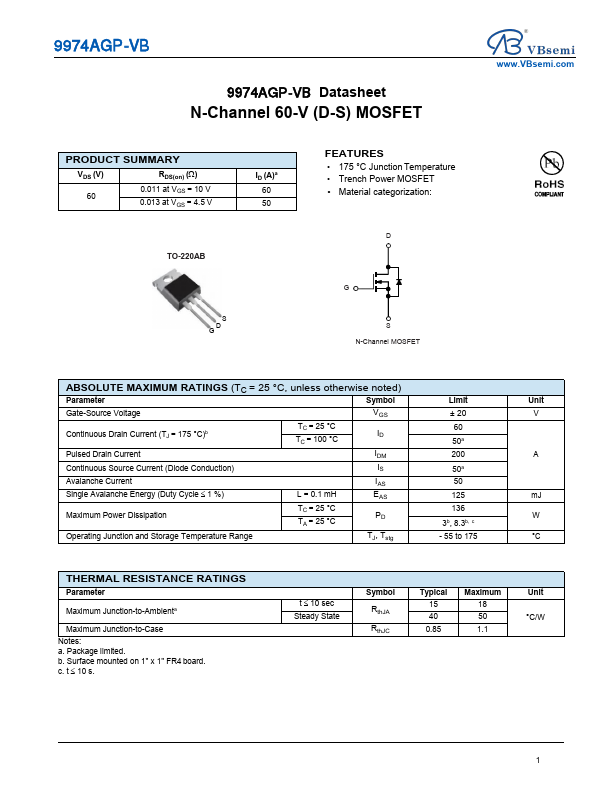

9974AGP
FEATURES
- 175 °C Junction Temperature
- Trench Power MOSFET
- Material categorization:
S N-Channel MOSFET
.VBsemi.
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Gate-Source Voltage
± 20
Continuous Drain Current (TJ = 175 °C)b
TC = 25 °C TC = 100 °C
60 50a
Pulsed Drain Current
Continuous Source Current (Diode Conduction)
50a
Avalanche Current
Single Avalanche Energy (Duty Cycle 1 %)
L = 0.1 m H
125 m J
Maximum Power Dissipation
TC = 25 °C TA = 25 °C
136 3b, 8.3b, c
Operating Junction and Storage Temperature Range
TJ, Tstg
- 55 to...
