AM2359P-T1-PF - P-Channel 60V MOSFET

Product Overview

VBsemi

📥 Download Datasheet

AM2359P-T1-PF P-Channel 60V MOSFET by VBsemi - Datasheet Preview — Datasheet preview – AM2359P-T1-PF

Datasheet Details

Part number	AM2359P-T1-PF
Manufacturer	VBsemi
File Size	491.14 KB
Description	P-Channel 60V MOSFET
Datasheet	AM2359P-T1-PF Datasheet

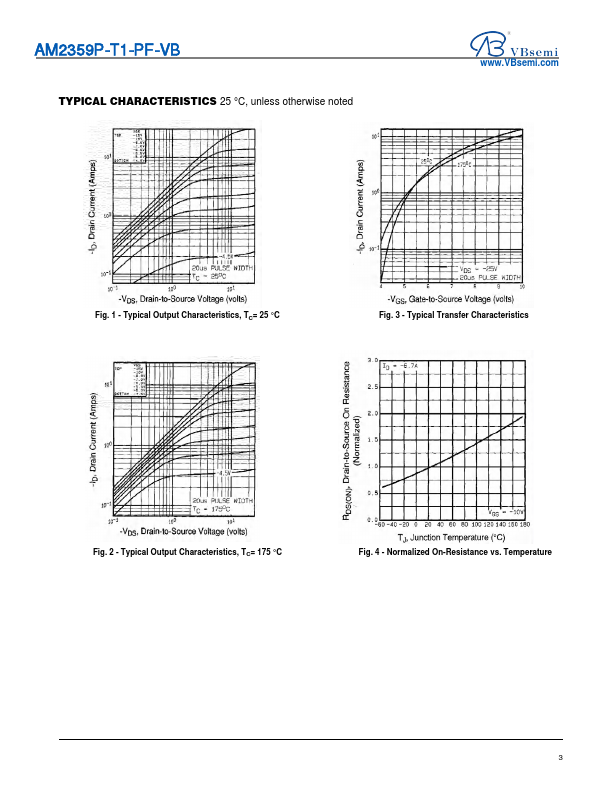

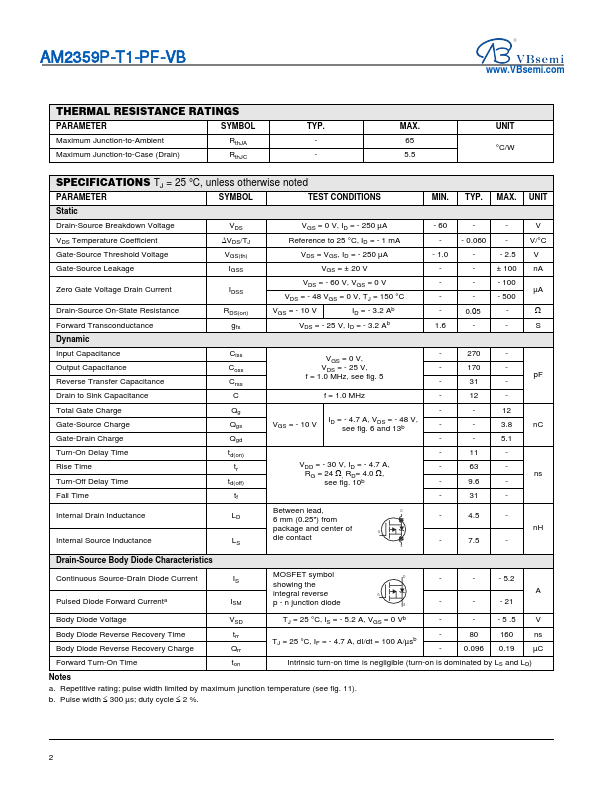

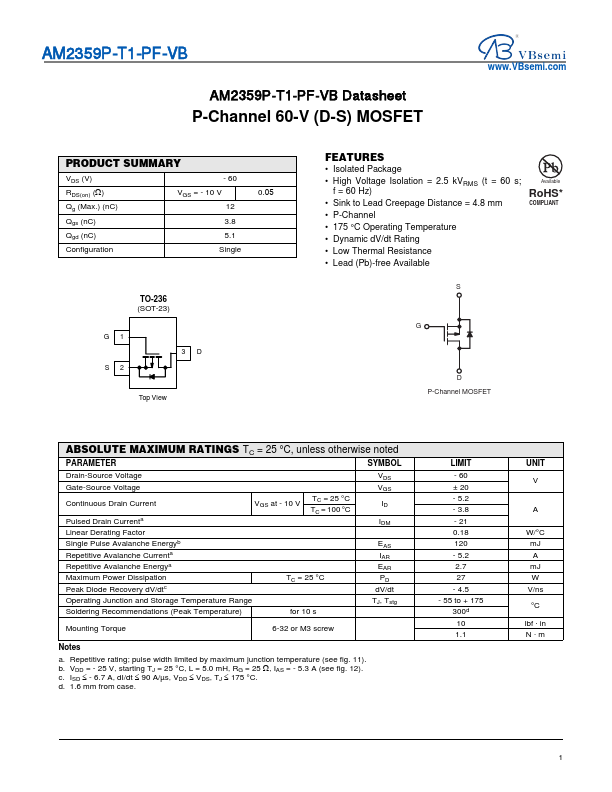

Additional preview pages of the AM2359P-T1-PF datasheet.

Product details

Features

Isolated Package.
High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz).
Sink to Lead Creepage Distance = 4.8 mm.
P-Channel.
175 °C Operating Temperature.
Dynamic dV/dt Rating.
Low Thermal Resistance.
Lead (Pb)-free Available Available RoHS.
