AOD2922 N-Channel 100V MOSFET

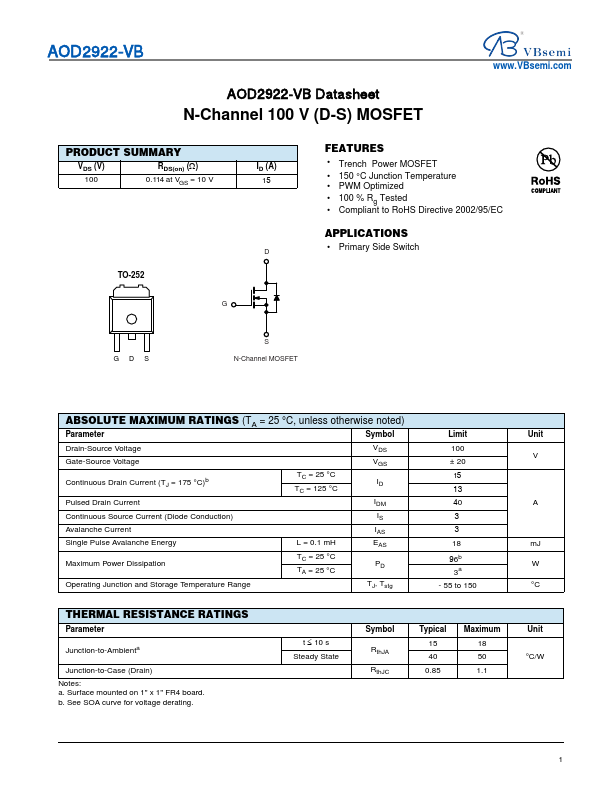

📥 Download Datasheet  Datasheet Preview Page 1

Description

AOD2922-VB AOD2922-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.114 at VGS = 10 V ID (A) 1.

📥 Download Datasheet

Preview of AOD2922 PDF

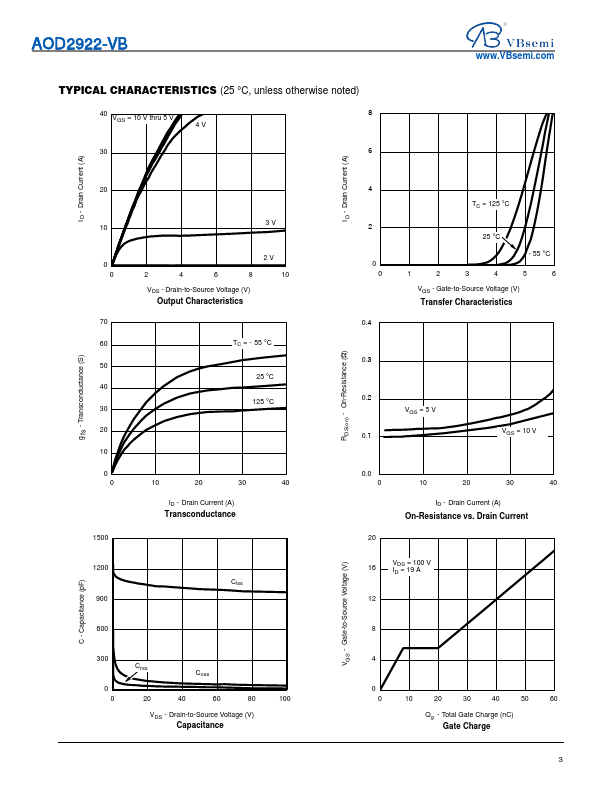

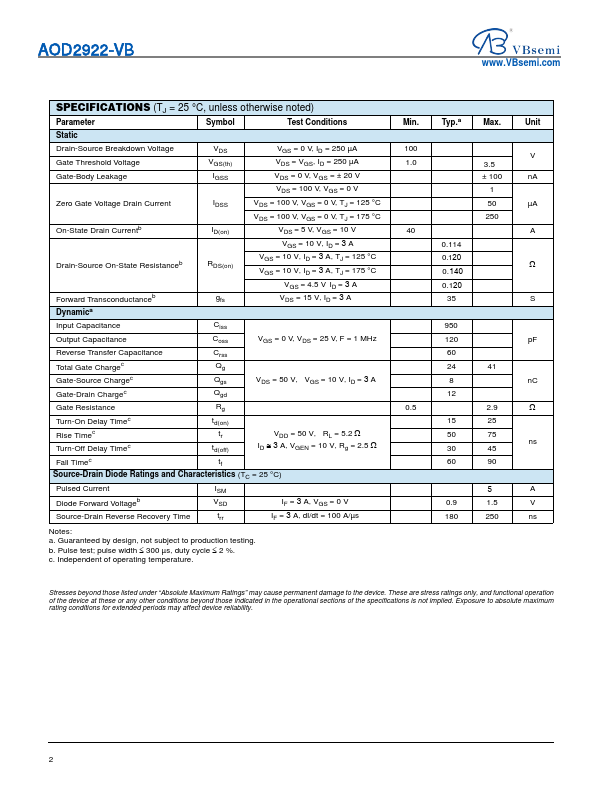

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AOD2922
Manufacturer
VBsemi
File Size
247.64 KB
Datasheet
AOD2922-VBsemi.pdf
Description
N-Channel 100V MOSFET

Features

* Trench Power MOSFET
* 150 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

Applications

* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Continuou
