Datasheet Specifications
- Part number
- AOT254L
- Manufacturer
- VBsemi
- File Size
- 240.91 KB
- Datasheet
- AOT254L-VBsemi.pdf
- Description
- N-Channel 150V MOSFET
Description

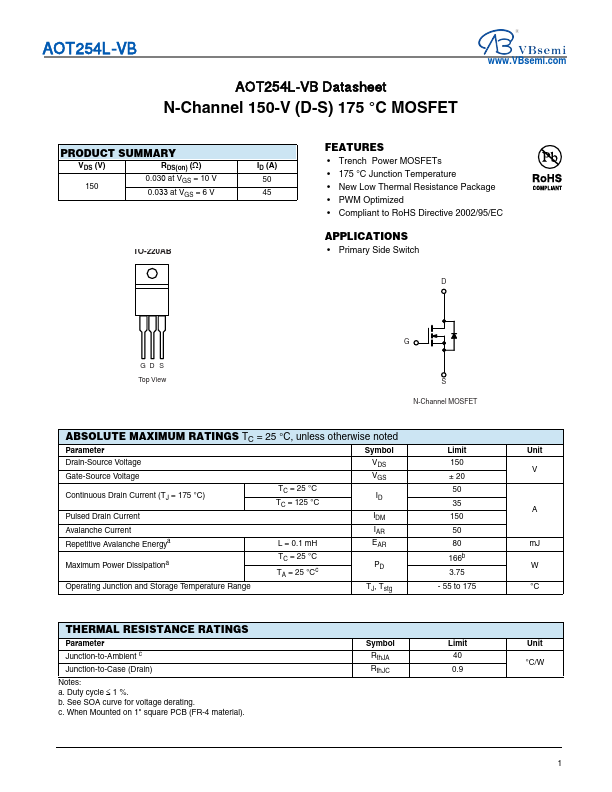

AOT254L-VB AOT254L-VB Datasheet N-Channel 150-V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 150 0.030 at VGS = 10 V .
Features
* Trench Power MOSFETsApplications
* Primary Side Switch D GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM AvAOT254L Distributors
