AP02N70EJ-HF N-Channel 700V Power MOSFET

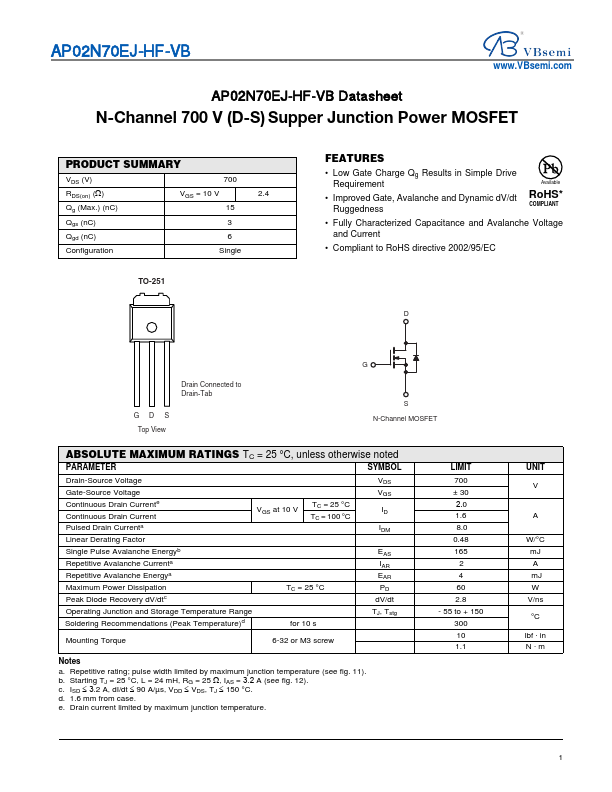

📥 Download Datasheet Datasheet Preview Page 1

Description

AP02N70EJ-HF-VB www.VBsemi.com AP02N70EJ-HF-VB Datasheet N-Channel 700 V (D-S) Supper Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 7.

📥 Download Datasheet

Preview of AP02N70EJ-HF PDF

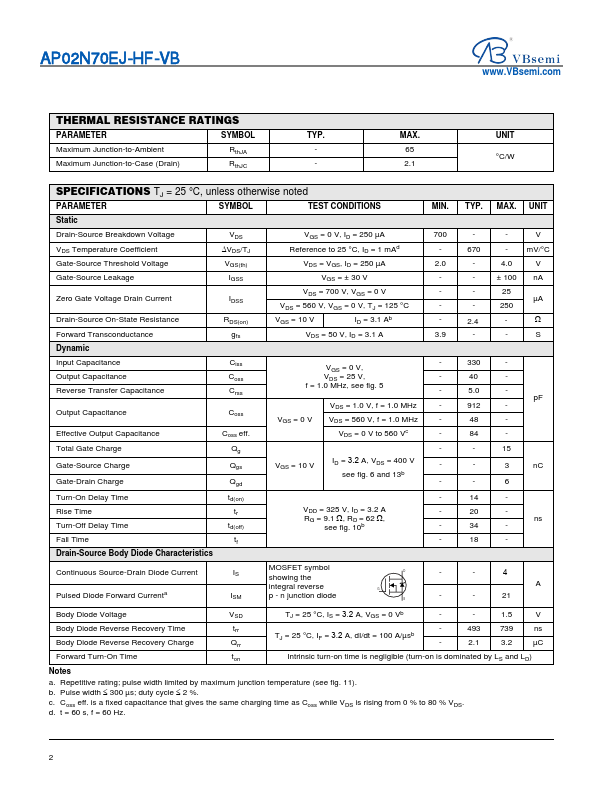

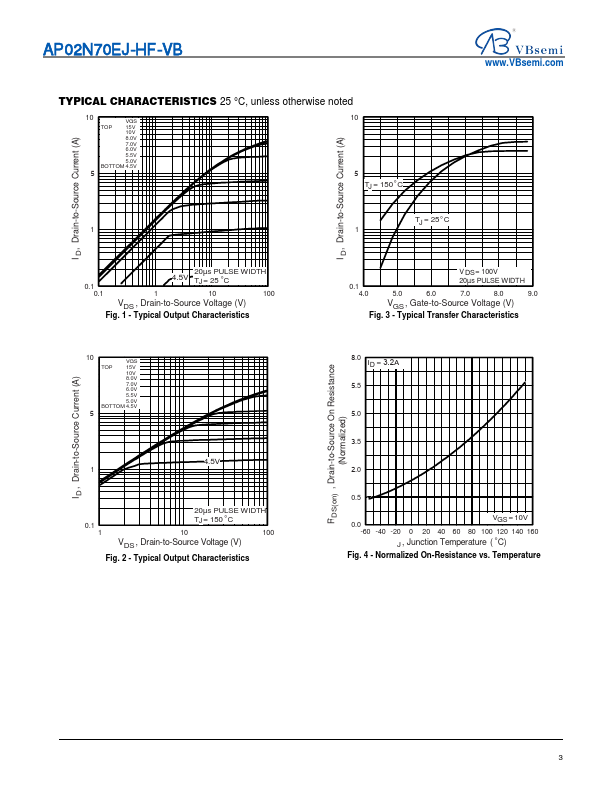

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AP02N70EJ-HF
Manufacturer
VBsemi
File Size
237.61 KB
Datasheet
AP02N70EJ-HF-VBsemi.pdf
Description
N-Channel 700V Power MOSFET

Features

* Low Gate Charge Qg Results in Simple Drive Requirement
* Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Available RoHS
* COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Compliant to RoHS directive 2002/95/EC D Drain Co
