AP2304GN-HF

N-Channel 20V MOSFET

VBsemi

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
		AP2304GN-HF	AP2304GN-HF	INSTOCK	Chip 1 Exchange	2115	0	$0

📥 Download PDF (241.56 KB)

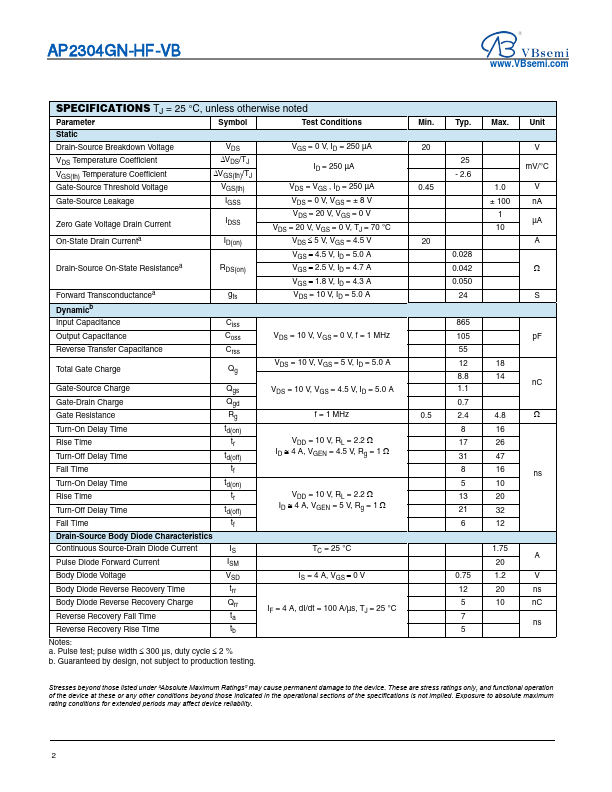

AP2304GN-HF Datasheet Preview Page 1 — Preview of AP2304GN-HF Datasheet

Datasheet Details

Part number:

AP2304GN-HF

Manufacturer:

VBsemi

File Size:

241.56 KB

Download:

📄 Download AP2304GN-HF Datasheet PDF

Description:

N-channel 20v mosfet.
AP2304GN-HF-VB AP2304GN-HF-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY.
VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042 at VGS = 2.5 V 0.050 at VGS = 1.8 V ID (A).

✔ AP2304GN-HF Features

Halogen-free According to IEC 61249-2-21 Definition
TrenchFET® Power MOSFET
100 % Rg Tested
Compliant to RoHS Directive 2002/95/EC APPLICATIONS
DC/DC Converters

✔ AP2304GN-HF Application

DC/DC Converters
Load Switch for Portable Applications ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless othe
