AP4500GM - N- & P-Channel 20V MOSFET

AP4500GM Description

AP4500GM-VB AP4500GM-VB Datasheet N- and P-Channel 20-V (D-S) MOSFETS www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.006 at VGS = 4.5 V N-.

AP4500GM Features

* Halogen-free

AP4500GM Applications

* Load Switch
* DC/DC Converter D1 RoHS COMPLIANT S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol N-Channel P-Channel Unit Drain-Source Voltage Gate-Source Voltage VDS 20 - 20 V VGS ± 12 TC

📥 Download Datasheet

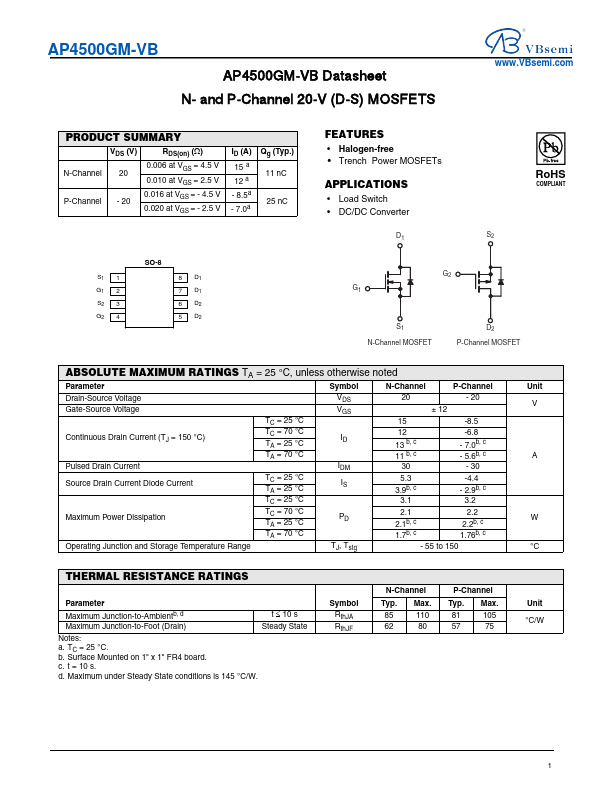

Preview of AP4500GM PDF

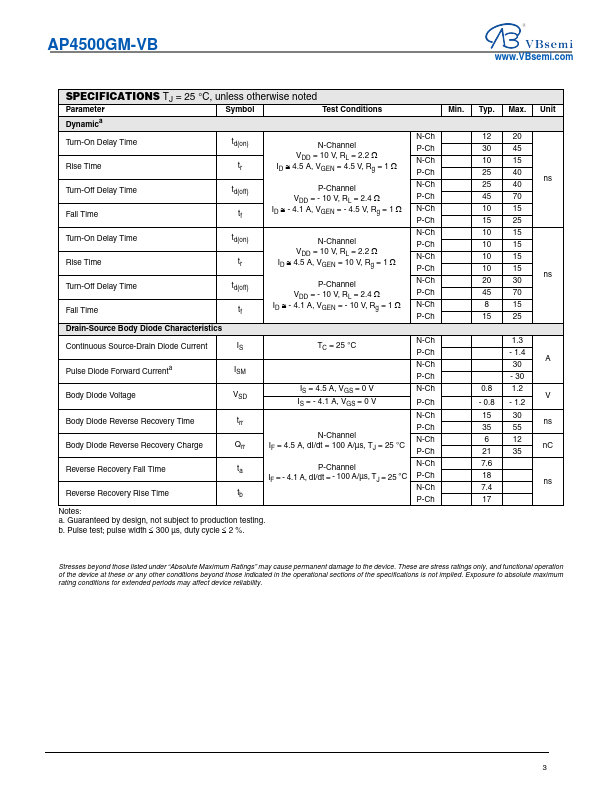

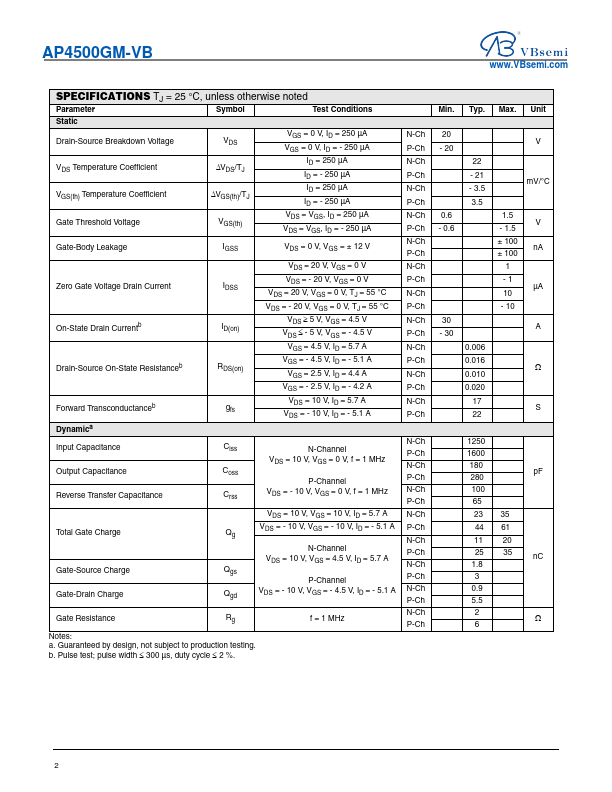

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP4500GM
Manufacturer
VBsemi
File Size
303.88 KB
Datasheet
AP4500GM-VBsemi.pdf
Description
N- & P-Channel 20V MOSFET
