AP9412AGP - N-Channel 30V MOSFET

AP9412AGP Description

AP9412AGP-VB AP9412AGP-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS.

AP9412AGP Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

AP9412AGP Applications

* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID

📥 Download Datasheet

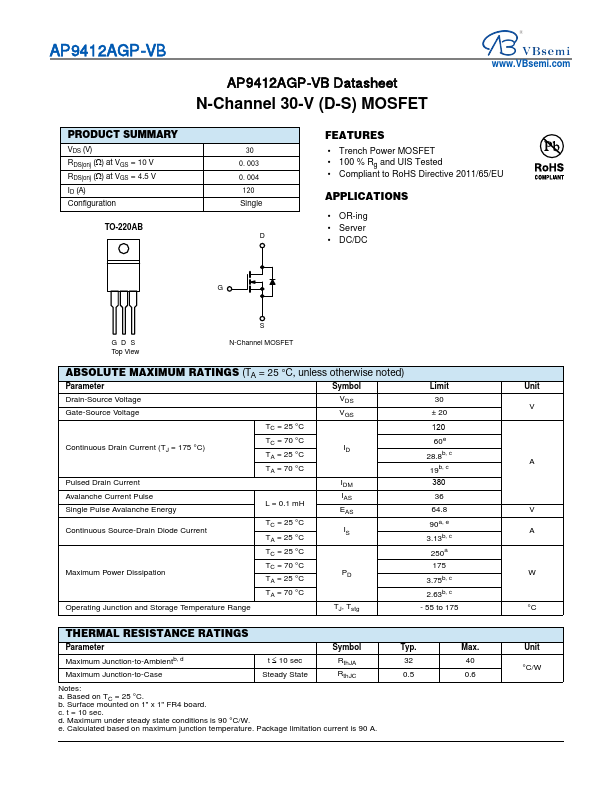

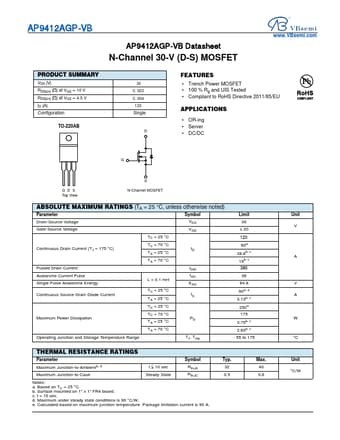

Preview of AP9412AGP PDF

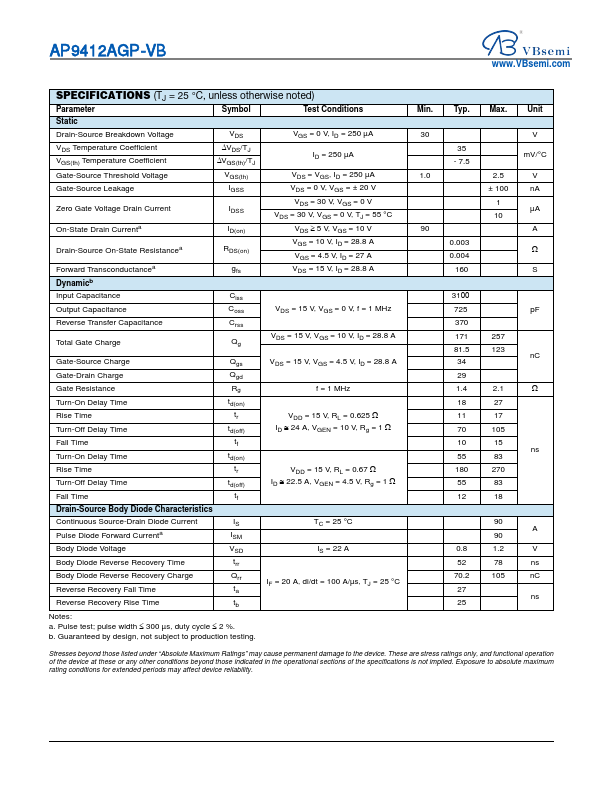

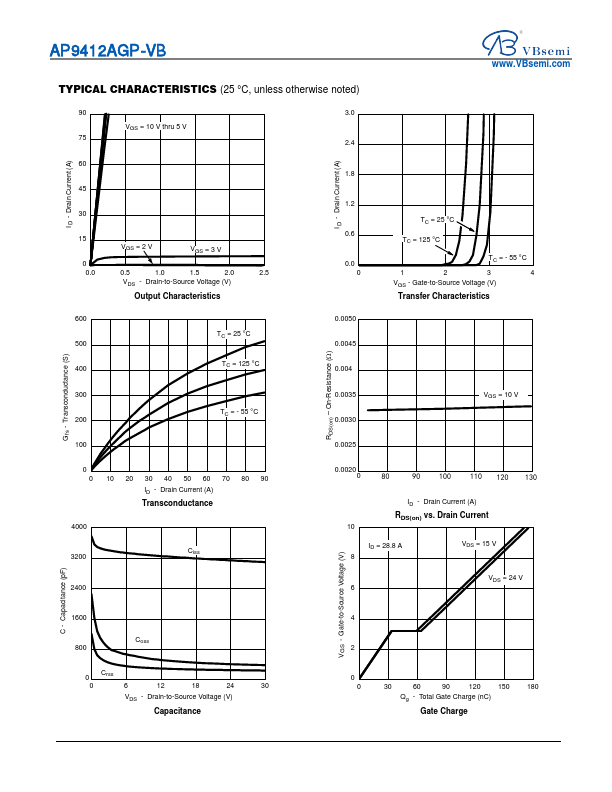

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP9412AGP
Manufacturer
VBsemi
File Size
245.54 KB
Datasheet
AP9412AGP-VBsemi.pdf
Description
N-Channel 30V MOSFET
