BSP296 N-Channel 100V MOSFET

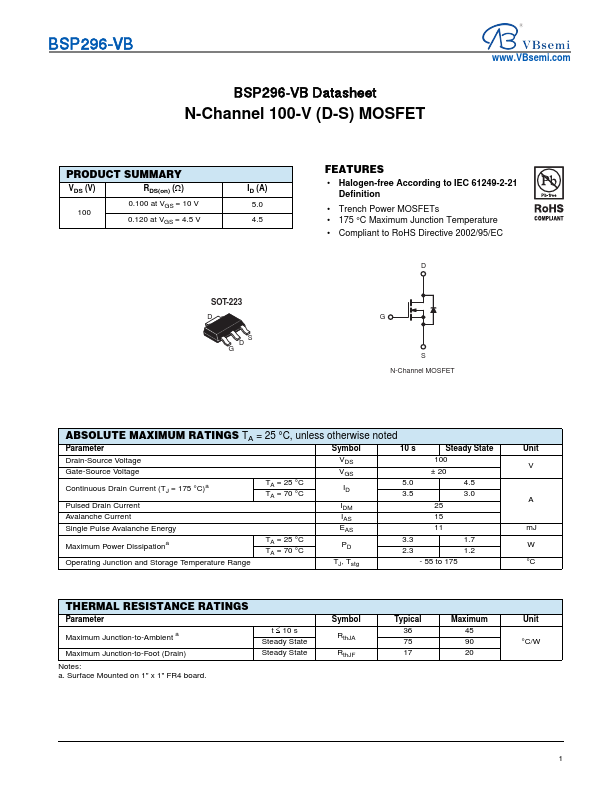

📥 Download Datasheet Datasheet Preview Page 1

Description

BSP296-VB BSP296-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.100 at VGS = 10 V 100 0.120 at V.

📥 Download Datasheet

Preview of BSP296 PDF

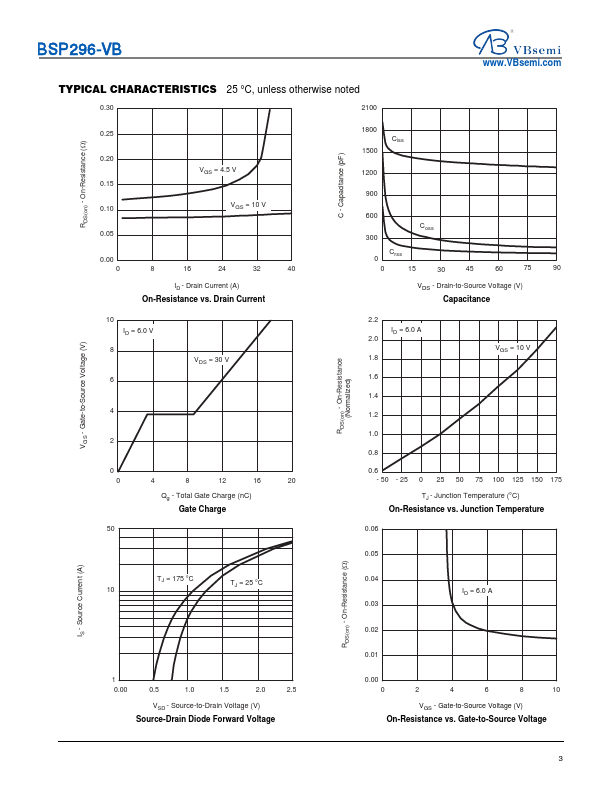

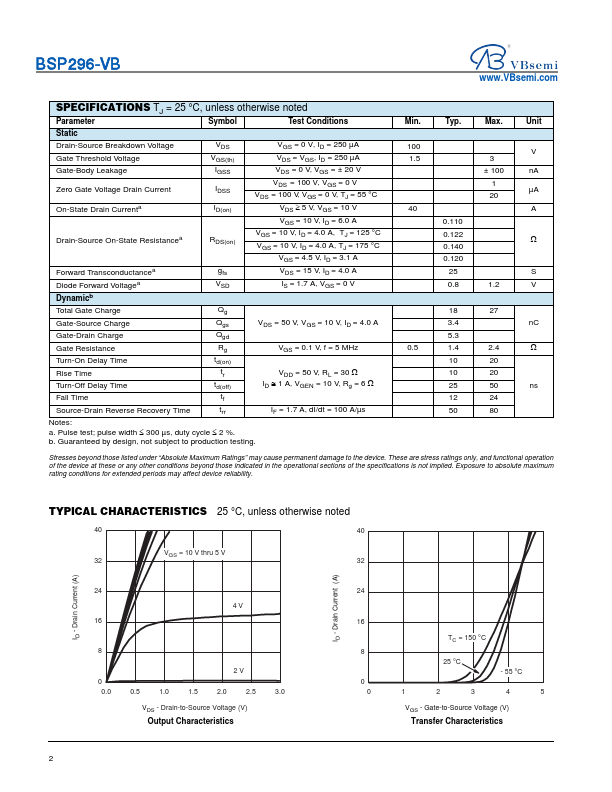

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BSP296
Manufacturer
VBsemi
File Size
238.97 KB
Datasheet
BSP296-VBsemi.pdf
Description
N-Channel 100V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFETs
* 175 °C Maximum Junction Temperature
* Compliant to RoHS Directive 2002/95/EC D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s St
