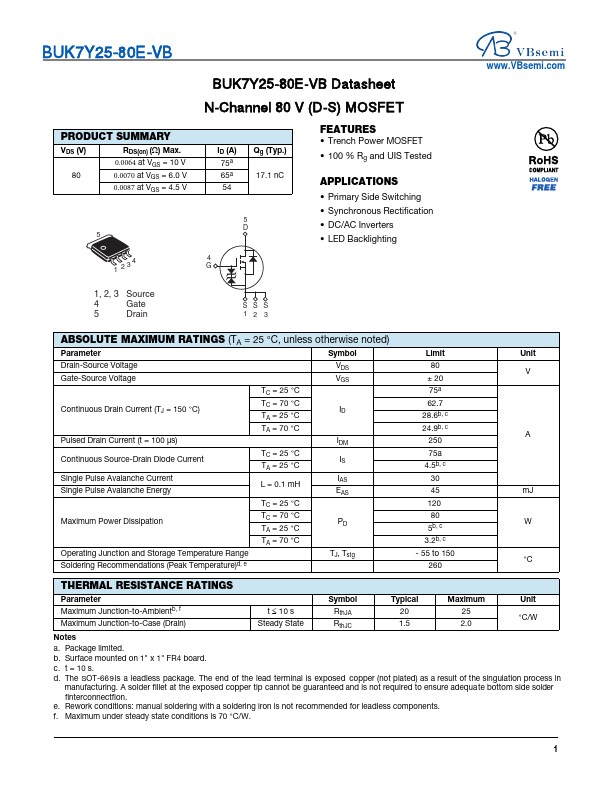

BUK7Y25-80E
FEATURES
- Trench Power MOSFET
- 100 % Rg and UIS Tested
APPLICATIONS
- Primary Side Switching
- Synchronous Rectification
- DC/AC Inverters
- LED Backlighting
4 G
.VBsemi.
1, 2, 3 Source
Gate
Drain
SSS 12 3
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
± 20
TC = 25 °C
75a
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
62.7 28.6b, c
Pulsed Drain Current (t = 100 μs)
TA = 70 °C
24.9b, c A
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
75a 4.5b, c
Single Pulse Avalanche Current Single Pulse Avalanche...
