* Trench Power MOSFETS
* 175 °C Junction Temperature
* Low Thermal Resistance Package Available RoHS
* COMPLIANT D TO-252 GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-
CBL25N10K Datasheet (192.23 KB)
CBL25N10K
VBsemi
192.23 KB
N-channel 100v mosfet.

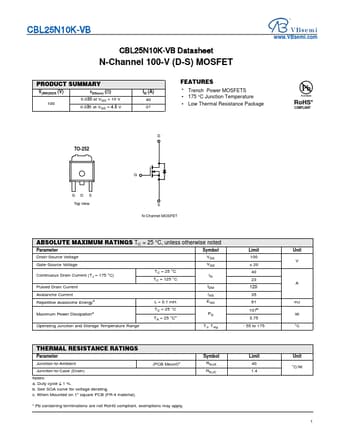

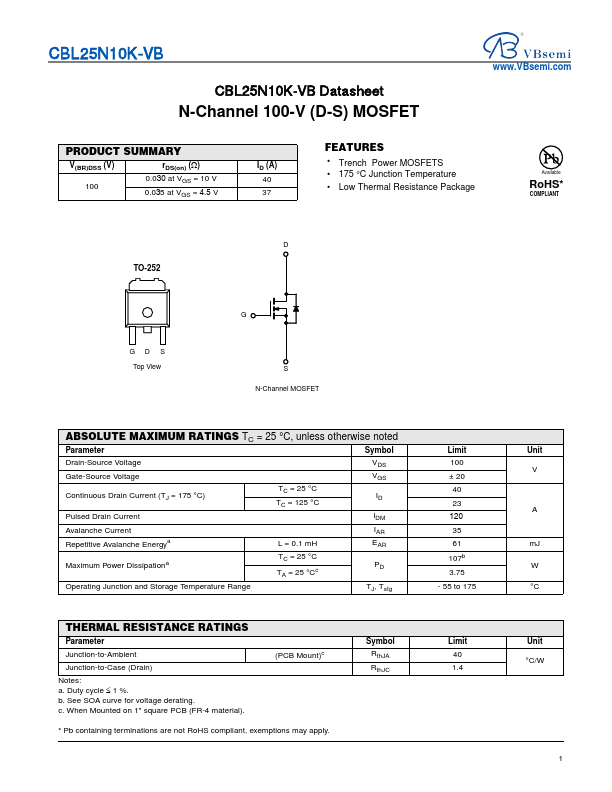

CBL25N10K-VB CBL25N10K-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.030 at VGS = 10 V.
