CHT2324PT

N-Channel 20V MOSFET

CHT2324PT Features

* Halogen-free According to IEC 61249-2-21 Definition

* TrenchFET® Power MOSFET

* 100 % Rg Tested

* Compliant to RoHS Directive 2002/95/EC APPLICATIONS

* DC/DC Converters

* Load Switch for Portable Applications ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unl

CHT2324PT Datasheet (241.50 KB)

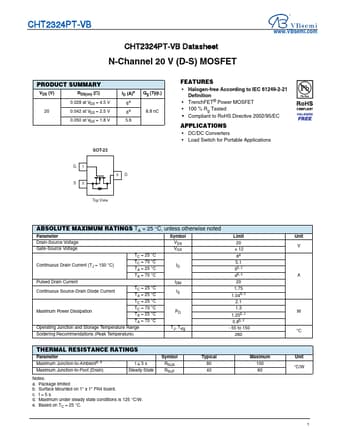

Preview of CHT2324PT PDF

Datasheet Details

Part number:

CHT2324PT

Manufacturer:

VBsemi

File Size:

241.50 KB

Description:

N-channel 20v mosfet.
CHT2324PT-VB CHT2324PT-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.04.
