CMP3205 N-Channel 60V MOSFET

VBsemi

Description

CMP3205-VB CMP3205-VB Datasheet N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 60 V 5 m 120 A Single F.

📥 Download Datasheet

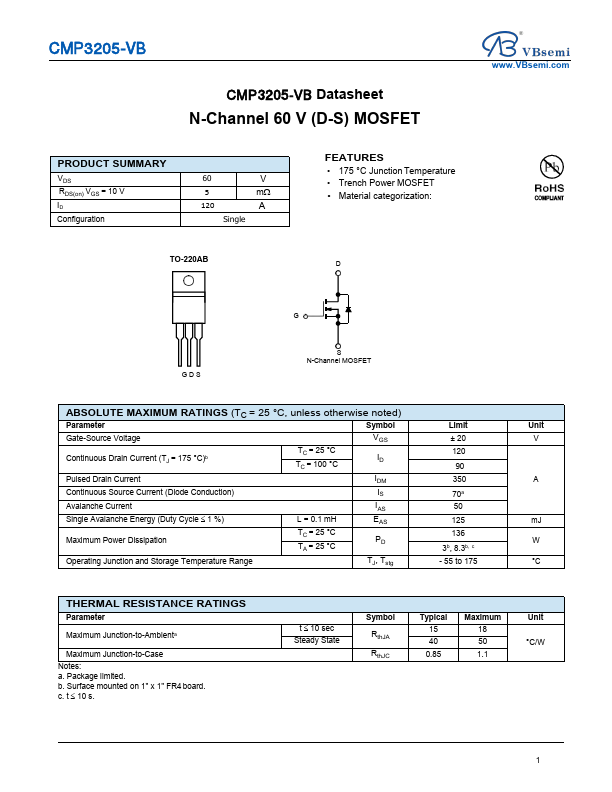

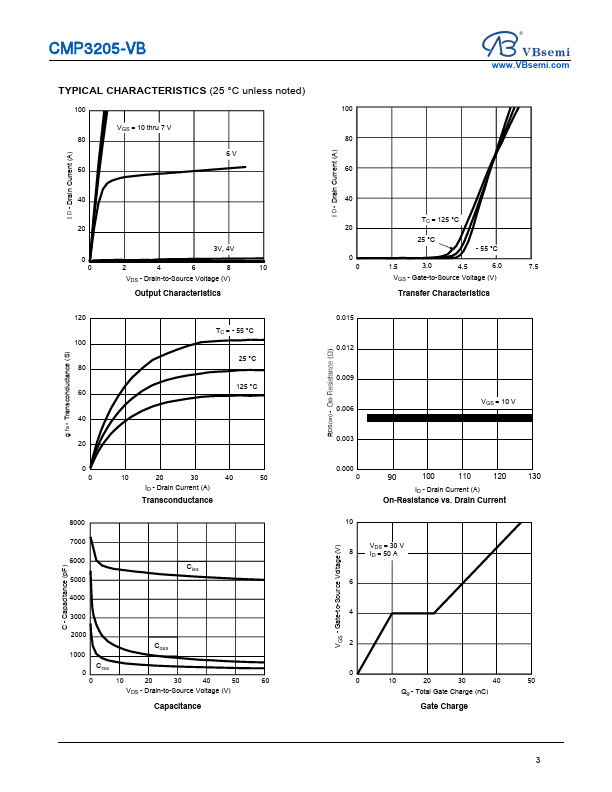

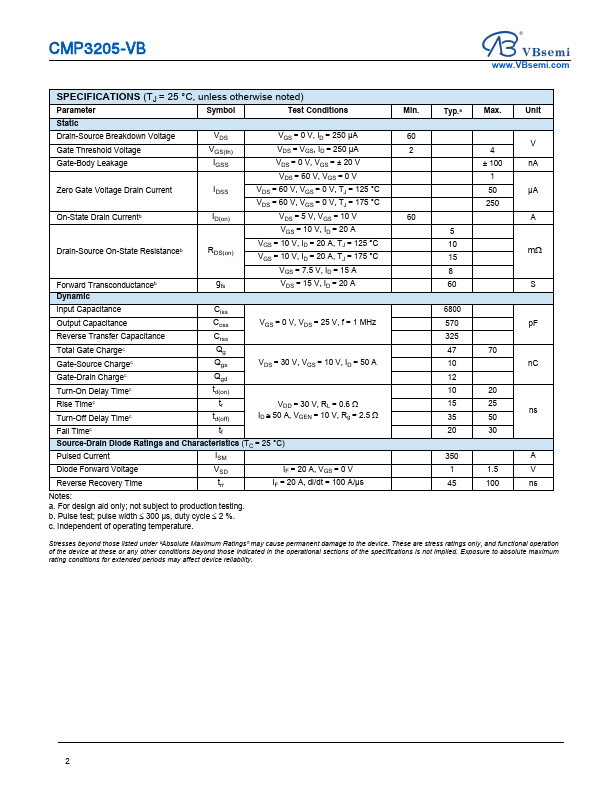

CMP3205 Datasheet Preview — Preview of CMP3205 PDF

Datasheet Specifications

Part number: CMP3205
Manufacturer: VBsemi
File Size: 256.38 KB
Datasheet: CMP3205-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* 175 °C Junction Temperature
* Trench Power MOSFET
* Material categorization: TO-220AB D www. VBsemi. com G GDS S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuou
