CMP5950 P-Channel 100V MOSFET

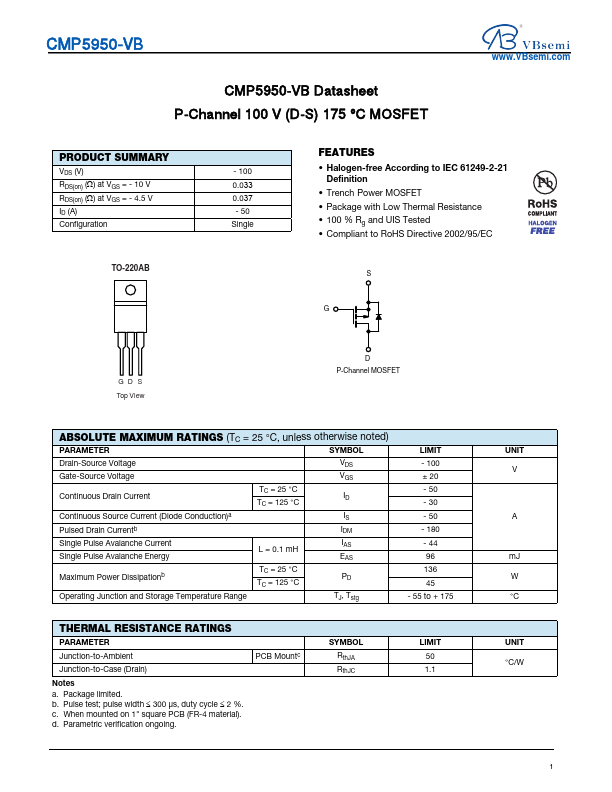

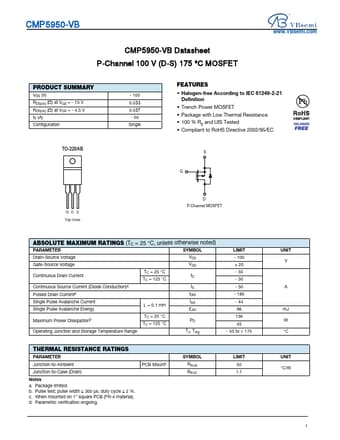

📥 Download Datasheet  Datasheet Preview Page 1

Description

CMP5950-VB CMP5950-VB Datasheet P-Channel 100 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = - 10 V RDS(on) () a.

📥 Download Datasheet

Preview of CMP5950 PDF

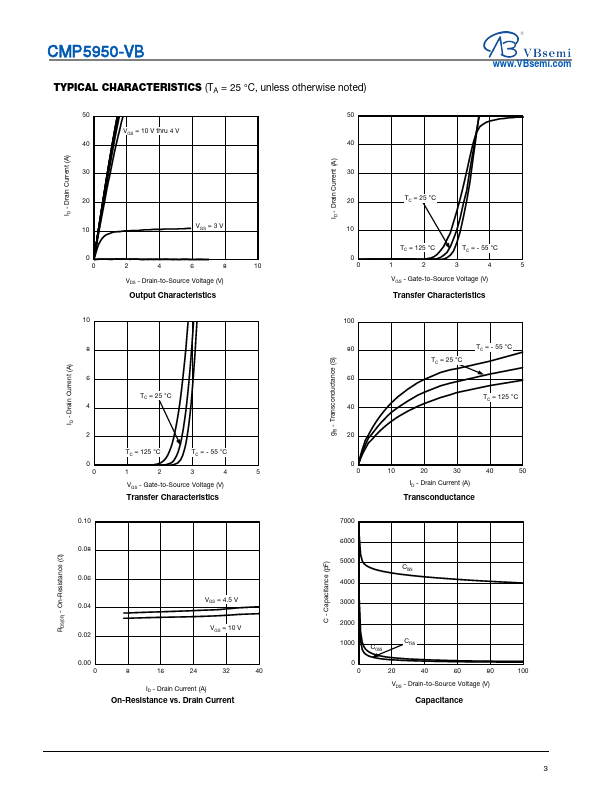

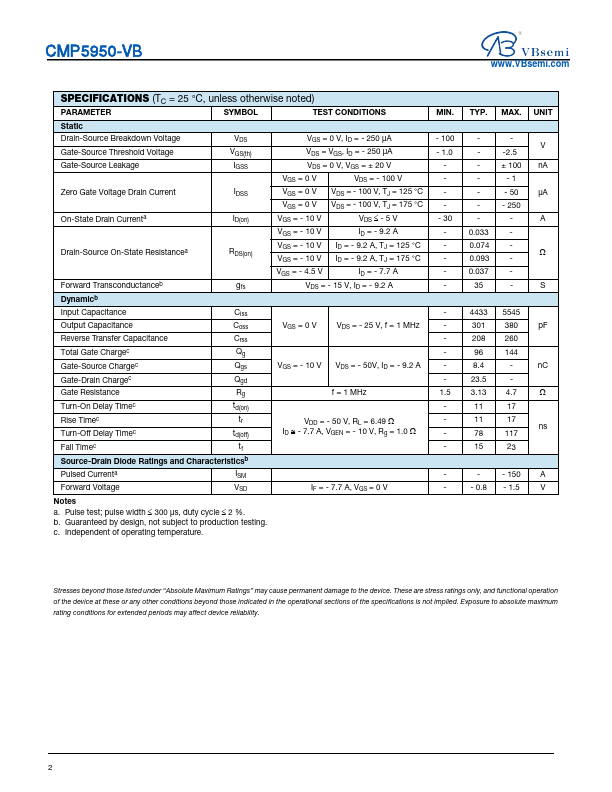

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CMP5950
Manufacturer
VBsemi
File Size
242.95 KB
Datasheet
CMP5950-VBsemi.pdf
Description
P-Channel 100V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Package with Low Thermal Resistance
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC S G GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C,
