F9630 P-Channel 200V MOSFET

VBsemi

Description

F9630-VB F9630-VB Datasheet P-Channel 200V (D-S)MOSFET PRODUCT SUMMARY VDS (V) -200 RDS(on) () VGS = -10 V 0.50 Qg max.(nC) 44 Qgs (nC) 7.

📥 Download Datasheet

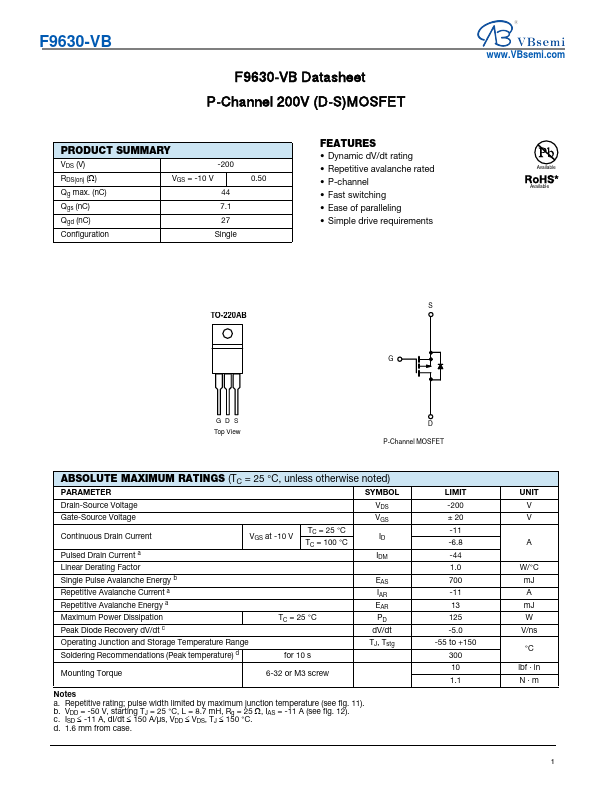

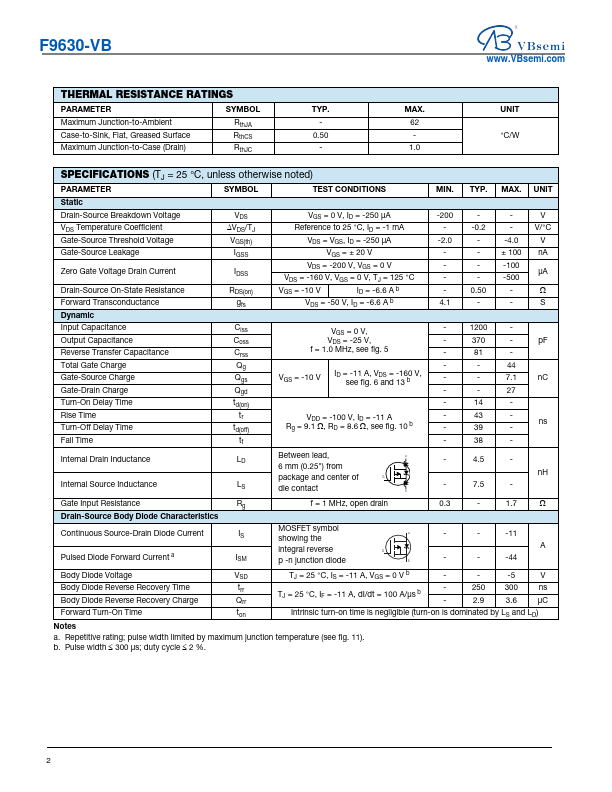

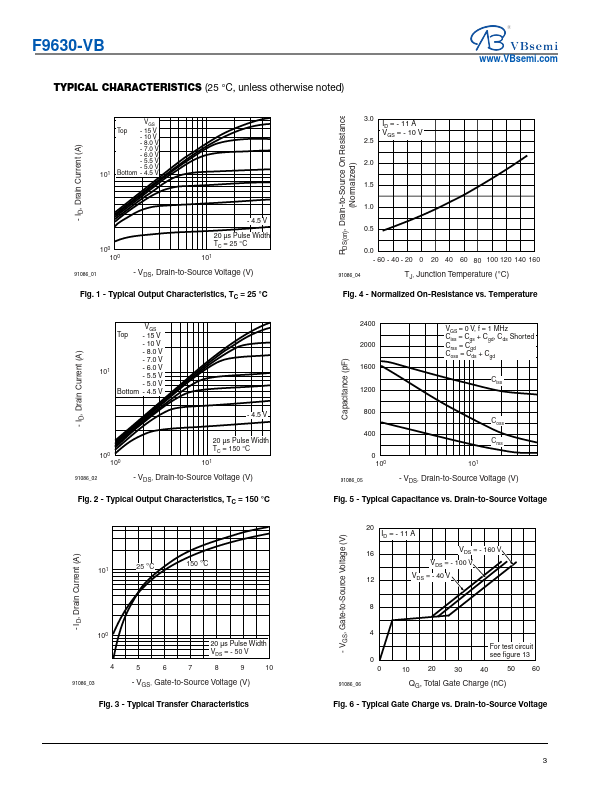

F9630 Datasheet Preview — Preview of F9630 PDF

Datasheet Specifications

Part number: F9630
Manufacturer: VBsemi
File Size: 263.72 KB
Datasheet: F9630-VBsemi.pdf
Description: P-Channel 200V MOSFET

Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* P-channel
* Fast switching
* Ease of paralleling
* Simple drive requirements www. VBsemi. com Available Available TO-220AB S G GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25
