FB7446 N-Channel 40V MOSFET

VBsemi

Description

FB7446-VB FB7446-VB Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 40 V 2 m 180 A Single TO-.

📥 Download Datasheet

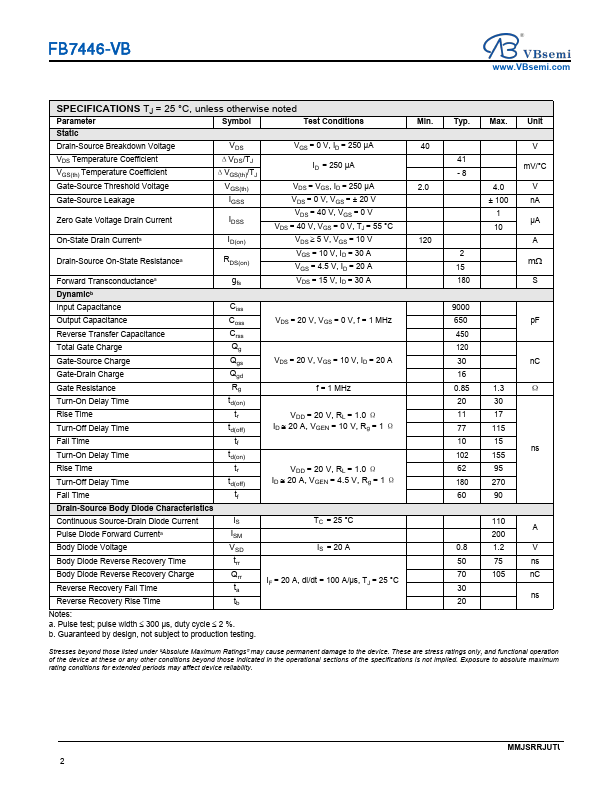

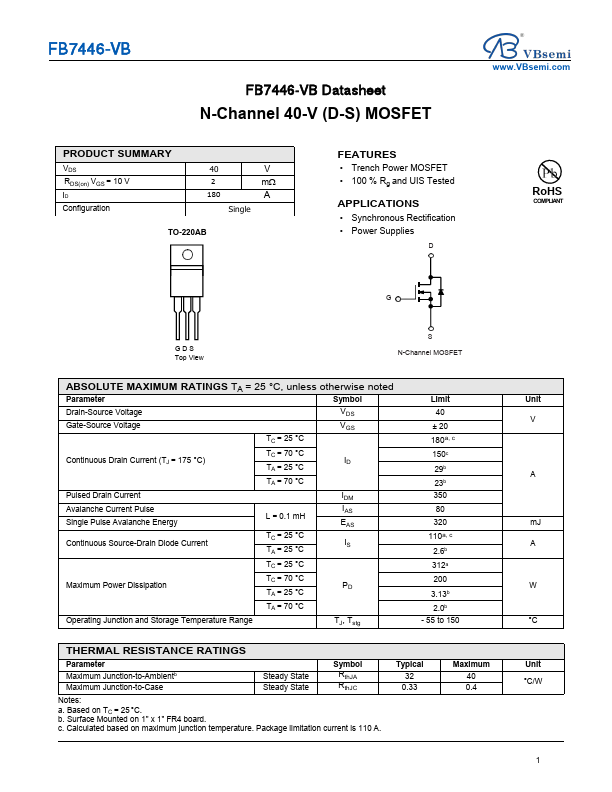

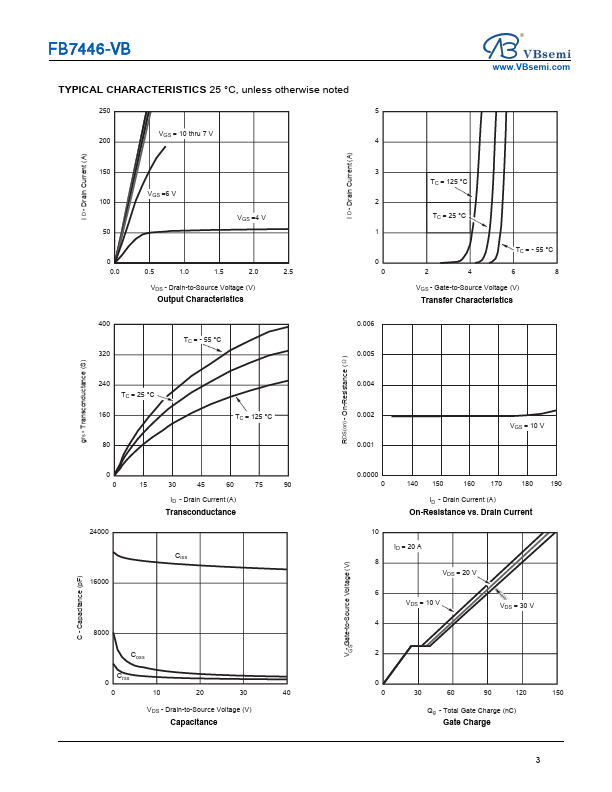

FB7446 Datasheet Preview — Preview of FB7446 PDF

Datasheet Specifications

Part number: FB7446
Manufacturer: VBsemi
File Size: 345.20 KB
Datasheet: FB7446-VBsemi.pdf
Description: N-Channel 40V MOSFET

Features

* Trench Power MOSFET

Applications

* Synchronous Rectification
* Power Supplies D www. VBsemi. com RoHS COMPLIANT G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Curren
