* 175 °C Junction Temperature
* Trench Power MOSFET
* Material categorization: D TO-252 www.VBsemi.com G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous
FR2405
VBsemi
262.52 KB
N-channel 60v mosfet.

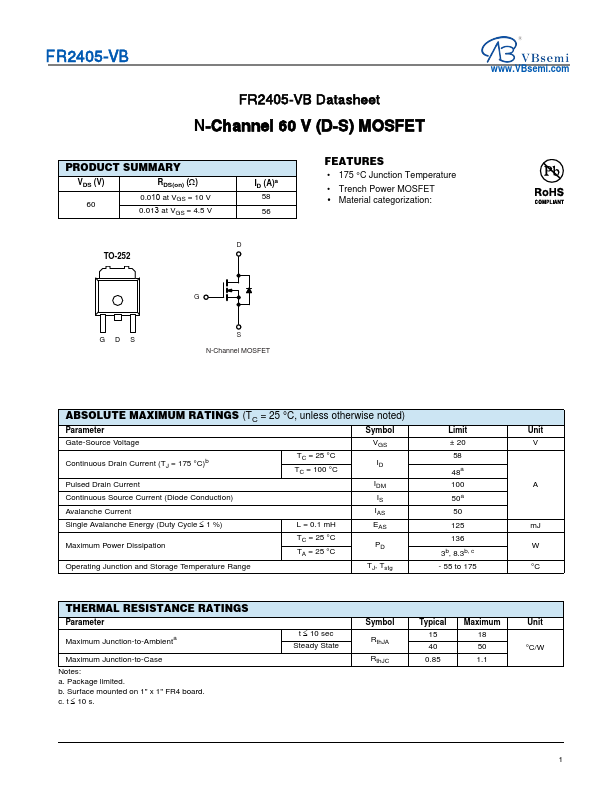

FR2405-VB FR2405-VB Datasheet N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.010 at VGS = 10 V 0.013 at VGS = 4.5 V ID (A)a.
