FS4510 N-Channel 100V MOSFET

VBsemi

Description

FS4510-VB FS4510-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.010 at VGS = 10 V 100 0.023 at V.

📥 Download Datasheet

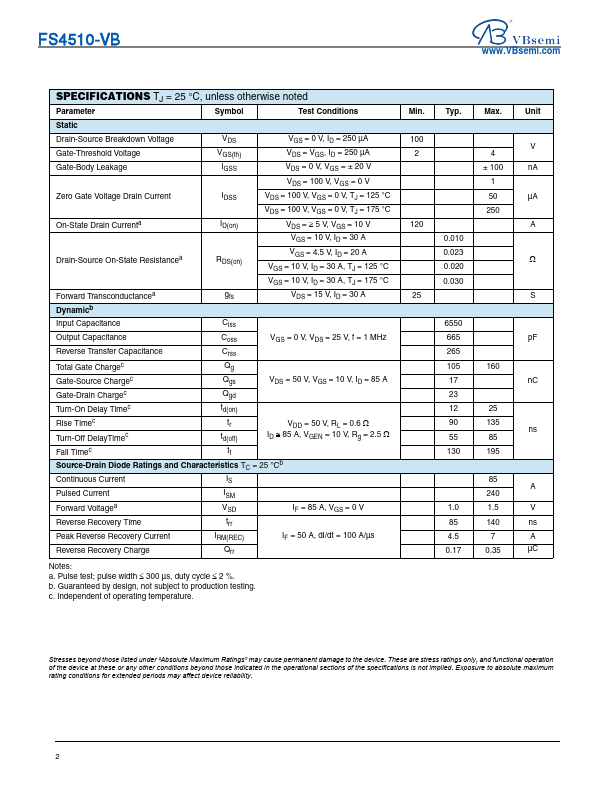

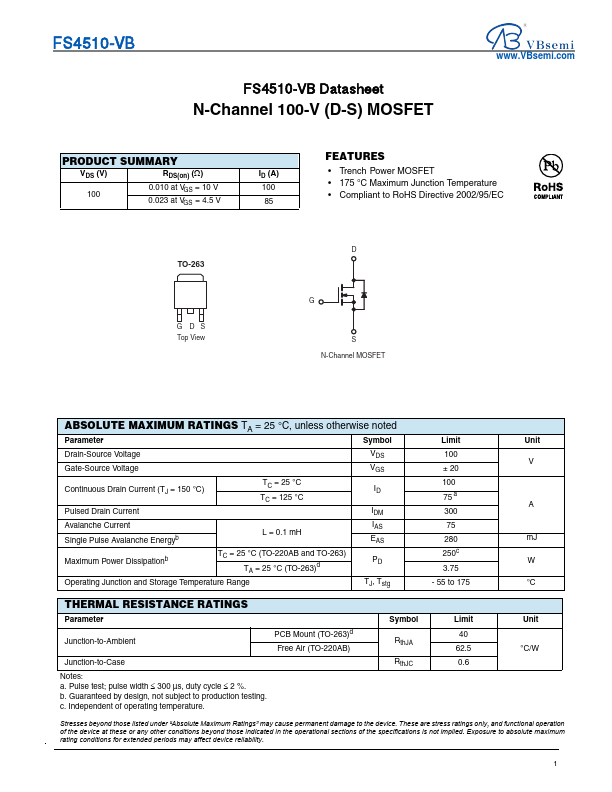

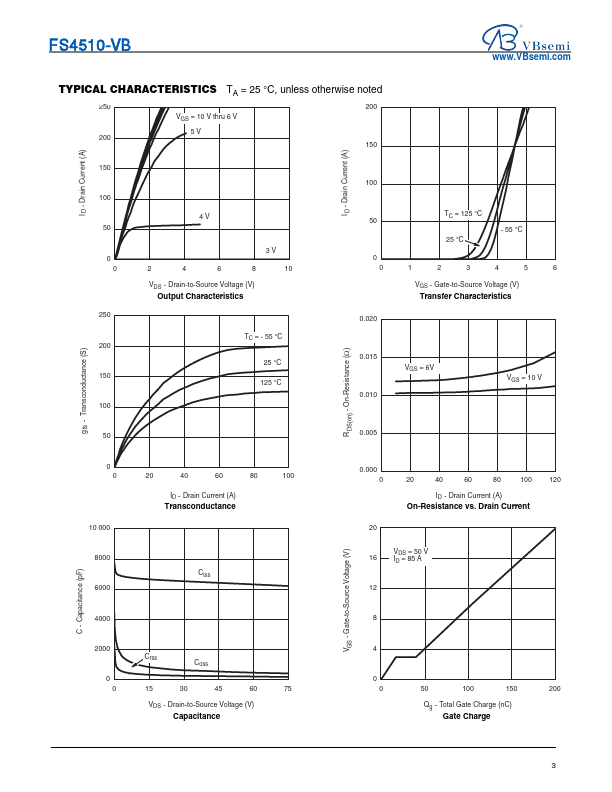

FS4510 Datasheet Preview — Preview of FS4510 PDF

Datasheet Specifications

Part number: FS4510
Manufacturer: VBsemi
File Size: 288.09 KB
Datasheet: FS4510-VBsemi.pdf
Description: N-Channel 100V MOSFET

Features

* Trench Power MOSFET
* 175 °C Maximum Junction Temperature
* Compliant to RoHS Directive 2002/95/EC TO-263 G DS Top View D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Vo
