FZ42 N-Channel 60V MOSFET

VBsemi

FZ42 Description

FZ42-VB FZ42-VB Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.024 at VGS = 10 V 0.028 at VGS = 4..

FZ42 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Surface Mount
* Available in Tape and Reel
* Dynamic dV/dt Rating
* Logic-Level Gate Drive
* Fast Switching
* Compliant to RoHS Directive 2002/95/EC D GD S Top View G S N-Channel MOSFET

📥 Download Datasheet

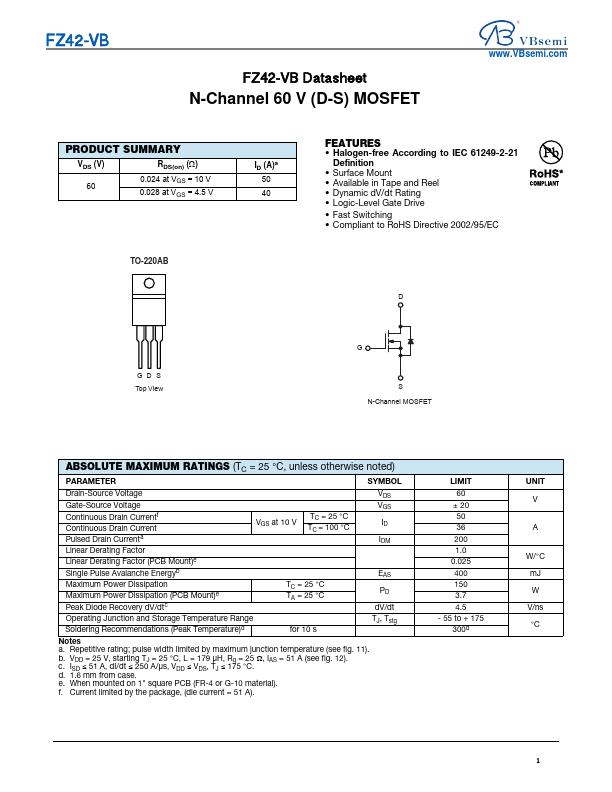

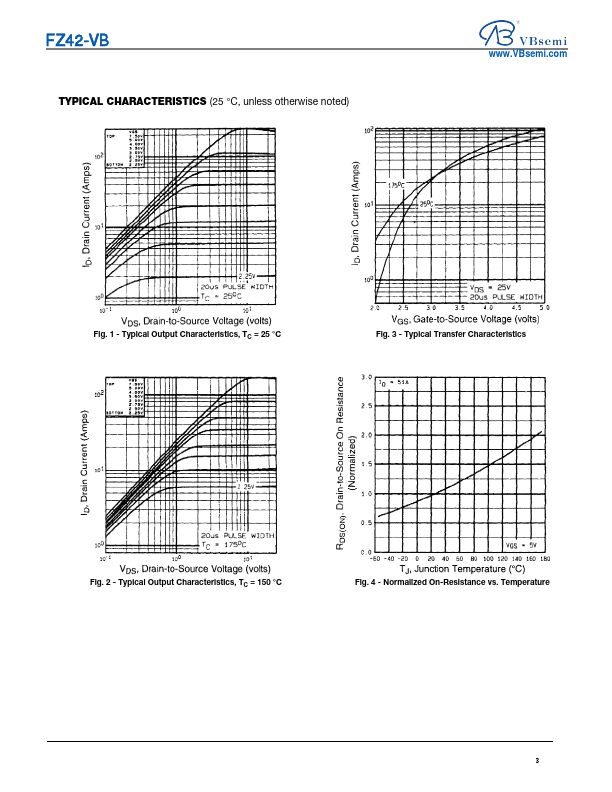

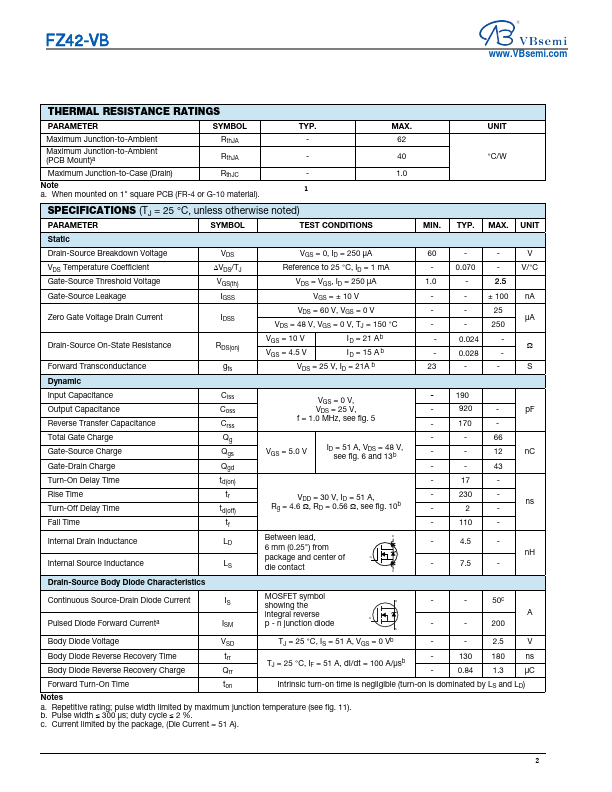

FZ42 Datasheet Preview — Preview of FZ42 PDF

Datasheet Details

Part number: FZ42
Manufacturer: VBsemi
File Size: 533.75 KB
Datasheet: FZ42-VBsemi.pdf
Description: N-Channel 60V MOSFET
