* TrenchFET® Power MOSFET
* 100 % Rg Tested APPLICATIONS
* For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Channel MOSFET www.VBsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symb
GN3407
VBsemi
239.30 KB
P-channel 30v mosfet.
GN3407-VB

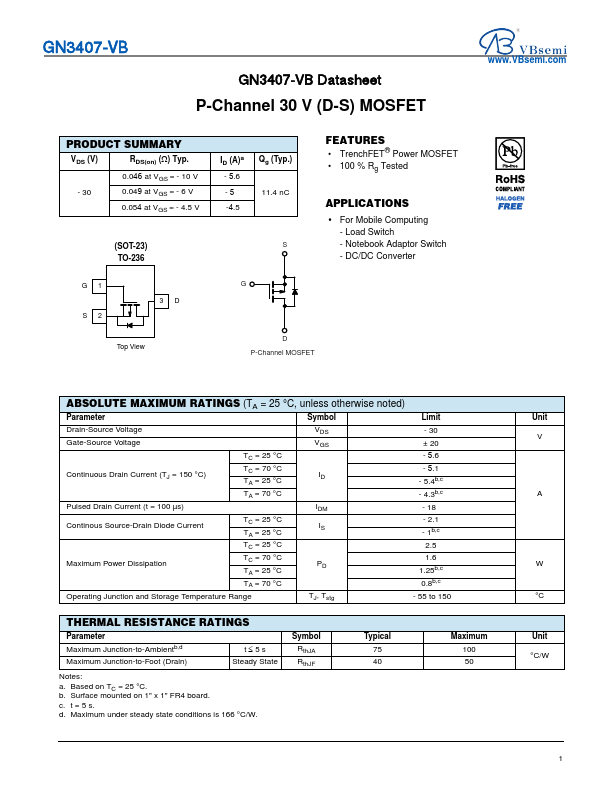

GN3407-VB Datasheet
P-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) () Typ.
0.046 at VGS = - 10 V
- 30
0.049 at VGS = - .
