HM7002 Datasheet, Mosfet, VBsemi

HM7002 Features

  • Mosfet
  • Halogen-free According to IEC 61249-2-21 Definition
  • Low Threshold: 2 V (typ.)
  • Low Input Capacitance: 25 pF
  • Fast Switching Speed: 25 ns

PDF File Details

Part number:

HM7002

Manufacturer:

VBsemi

File Size:

252.08kb

Download:

📄 Datasheet

Description:

N-channel 60v mosfet.

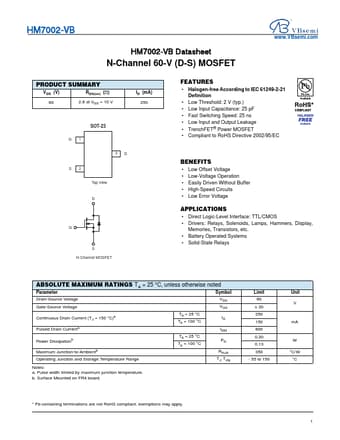

Datasheet Preview: HM7002 📥 Download PDF (252.08kb)
Page 2 of HM7002 Page 3 of HM7002

HM7002 Application

  • Applications
  • Direct Logic-Level Interface: TTL/CMOS
  • Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors,
