IRLML0060TRPBF N-Channel 60V MOSFET

VBsemi

Description

IRLML0060TRPBF N-Channel 60-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.085 at VGS = 10 V 60 0.096 at VGS = 4.5 V ID (A)a.

📥 Download Datasheet

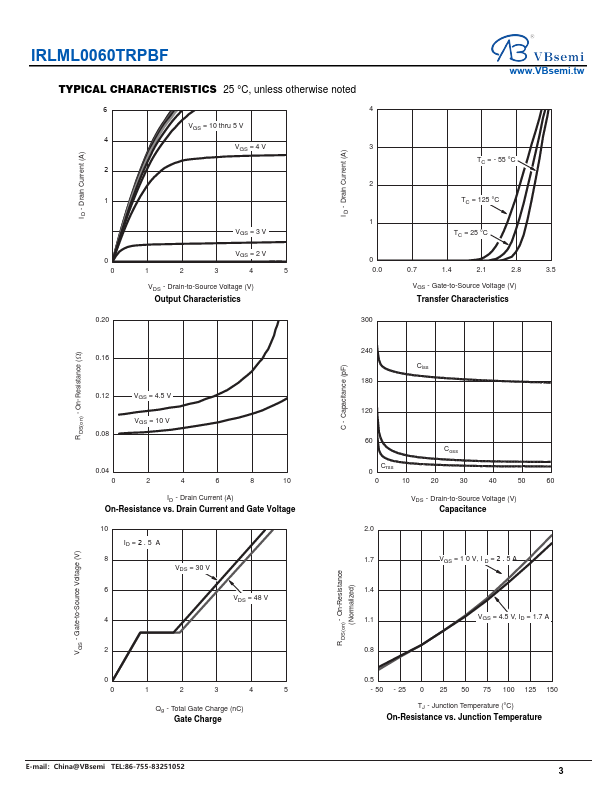

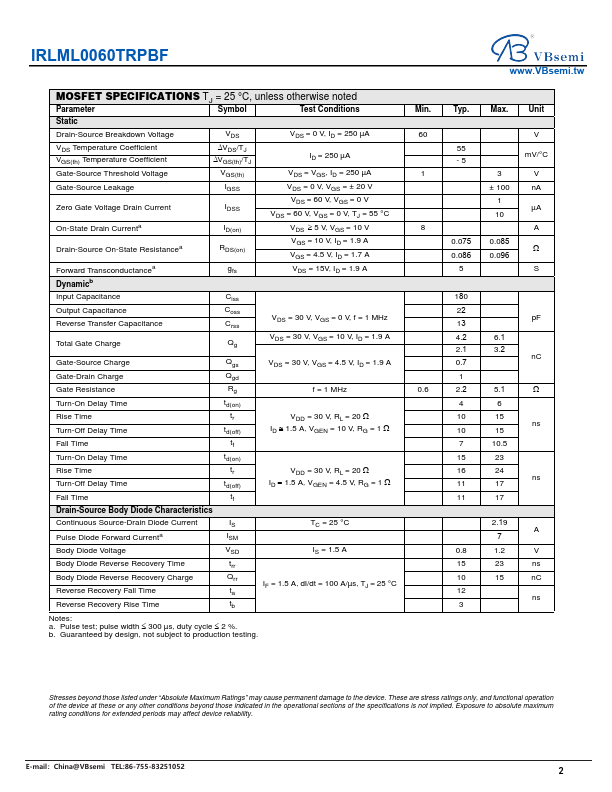

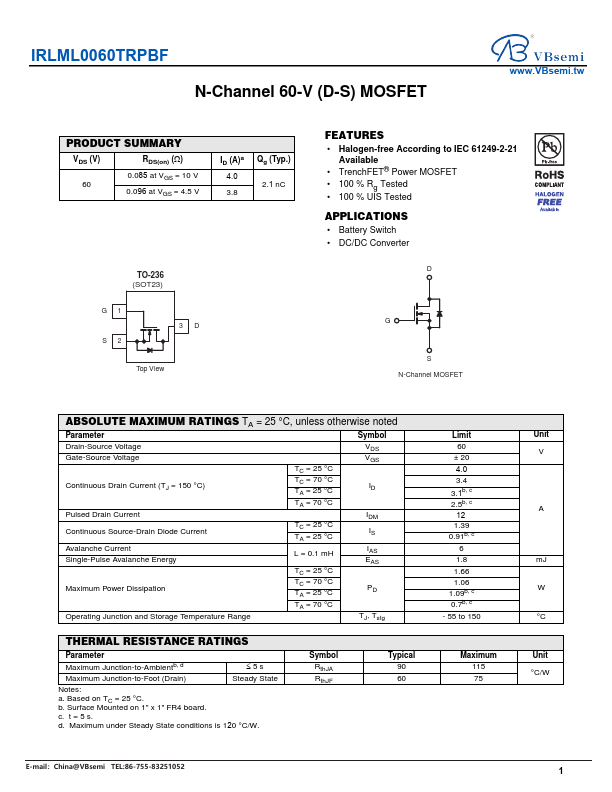

IRLML0060TRPBF Datasheet Preview — Preview of IRLML0060TRPBF PDF

Datasheet Specifications

Part number: IRLML0060TRPBF
Manufacturer: VBsemi
File Size: 872.50 KB
Datasheet: IRLML0060TRPBF-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C Pul
