J364 P-Channel 60V MOSFET

VBsemi

Description

J364-VB J364-VB Datasheet P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 4 at VGS = - 10 V VGS(th) (V) - .

📥 Download Datasheet

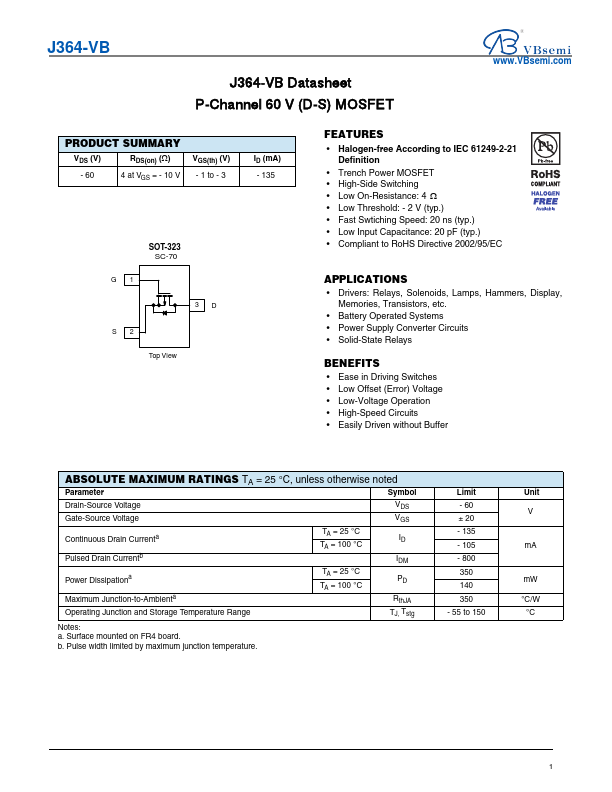

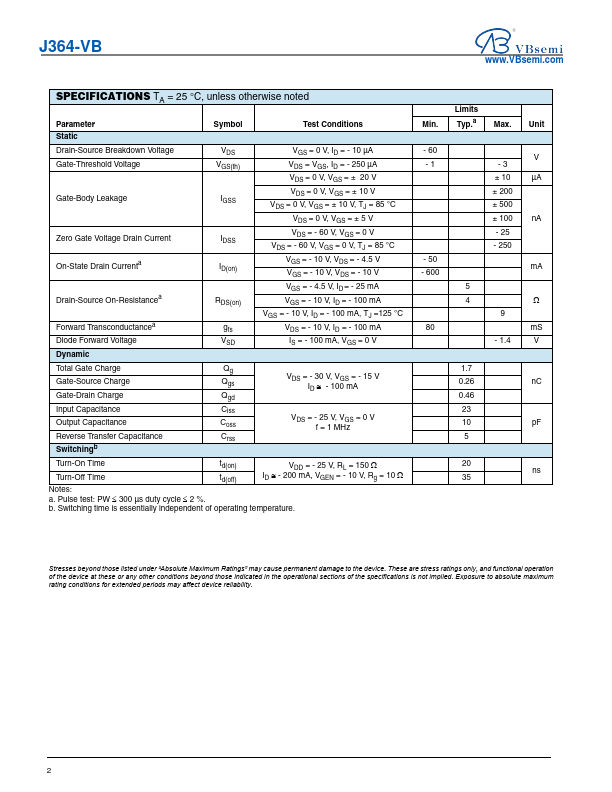

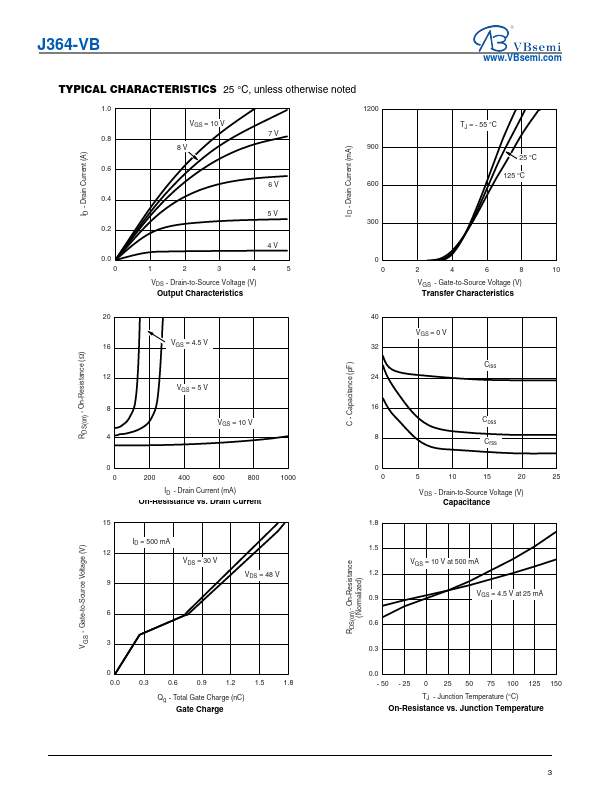

J364 Datasheet Preview — Preview of J364 PDF

Datasheet Specifications

Part number: J364
Manufacturer: VBsemi
File Size: 237.28 KB
Datasheet: J364-VBsemi.pdf
Description: P-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* High-Side Switching
* Low On-Resistance: 4 Ω
* Low Threshold: - 2 V (typ. )
* Fast Swtiching Speed: 20 ns (typ. )
* Low Input Capacitance: 20 pF (typ. )
* Compli

Applications

* Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
* Battery Operated Systems
* Power Supply Converter Circuits
* Solid-State Relays BENEFITS
* Ease in Driving Switches
* Low Offset (Error) Voltage
* Low-Voltage
